Mirror Heater, Rear Window Defogger
›
System Diagrams
System Diagrams

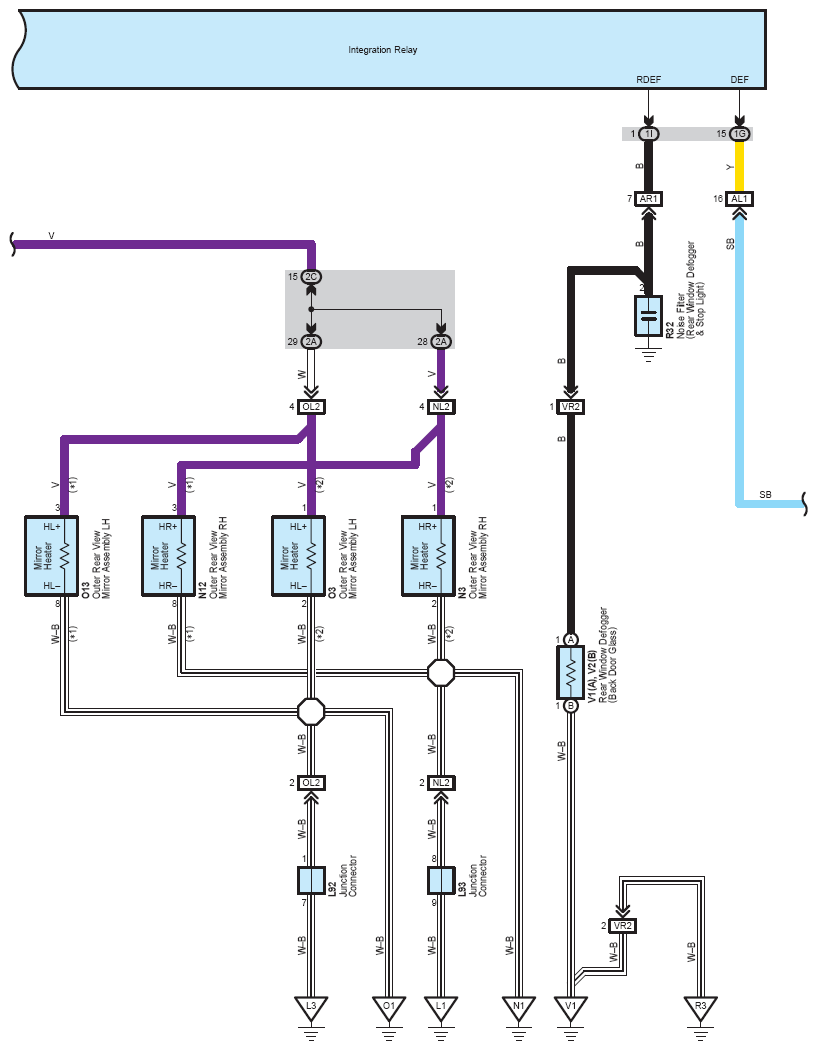

Fig 1: Mirror Heater, Rear Window Defogger (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

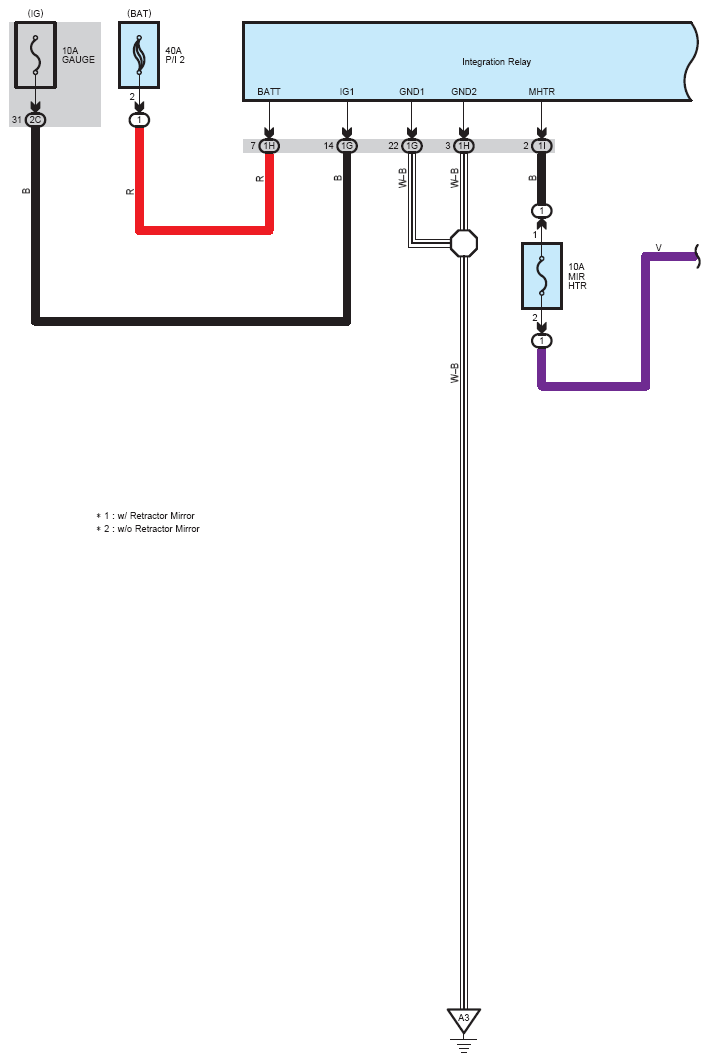

Fig 2: Mirror Heater, Rear Window Defogger (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

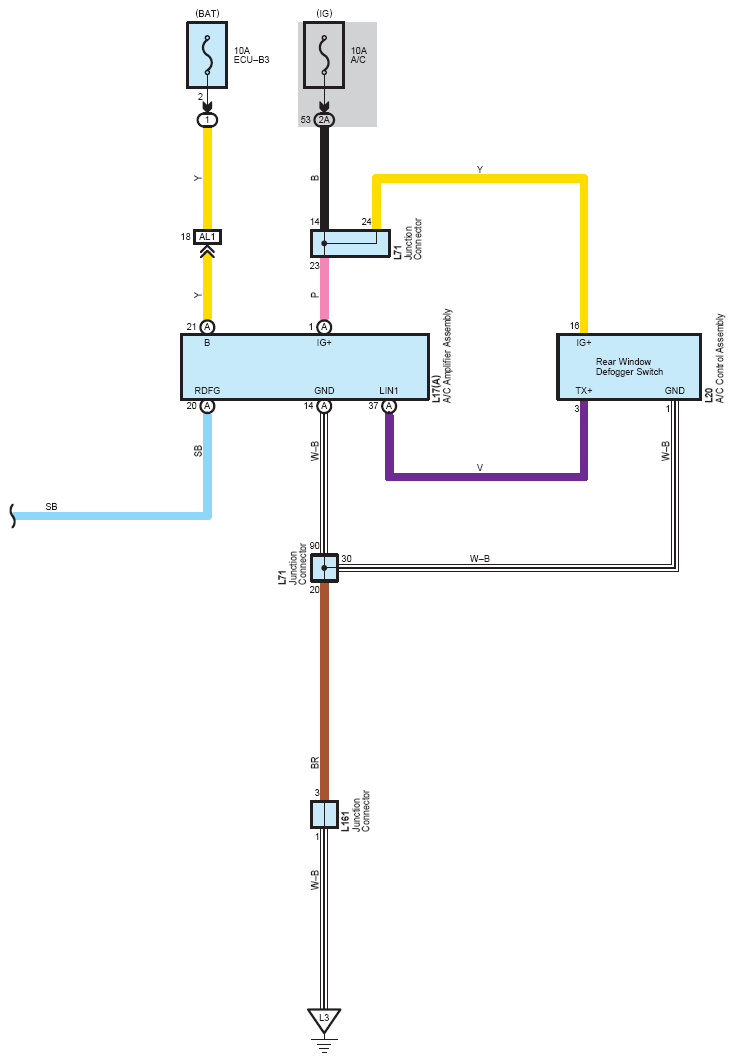

Fig 3: Mirror Heater, Rear Window Defogger (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
