System Diagrams

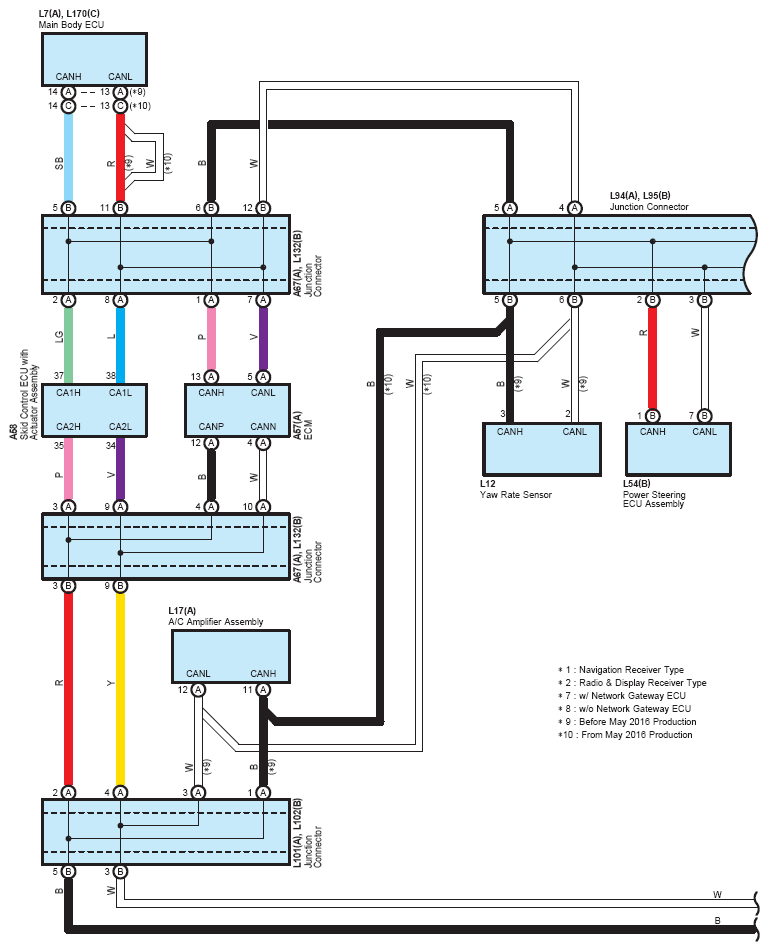

Fig 1: Multiplex Communication System (CAN) (1 Of 6)
G12214519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

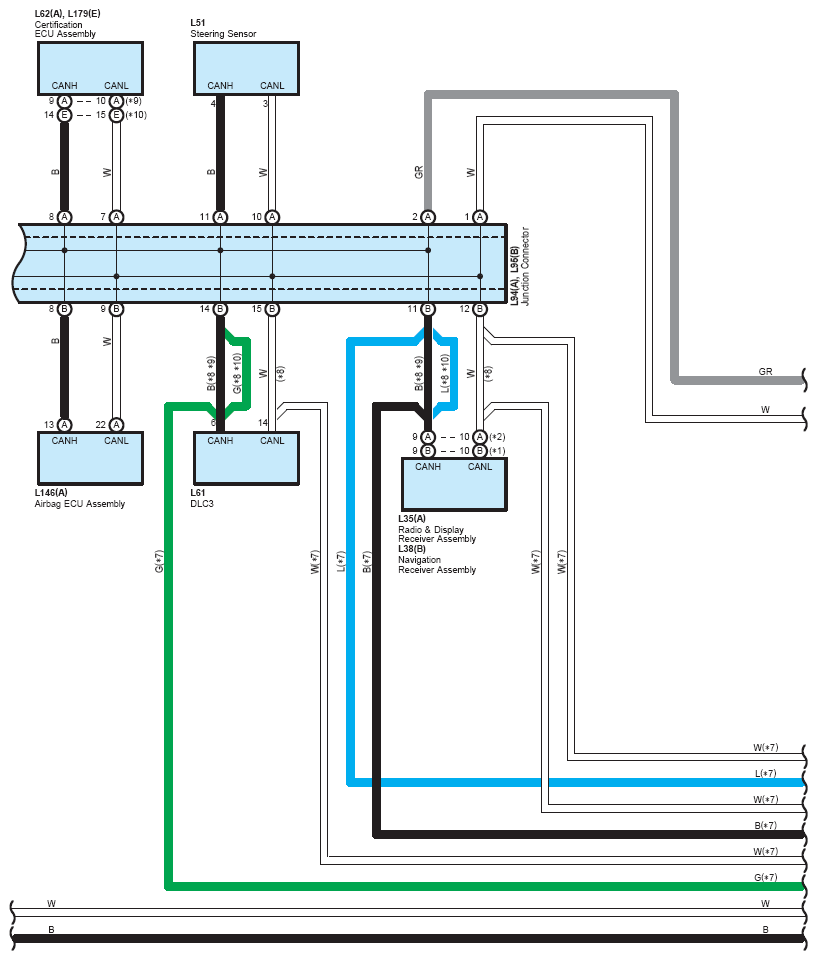

Fig 2: Multiplex Communication System (CAN) (2 Of 6)
G12214520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

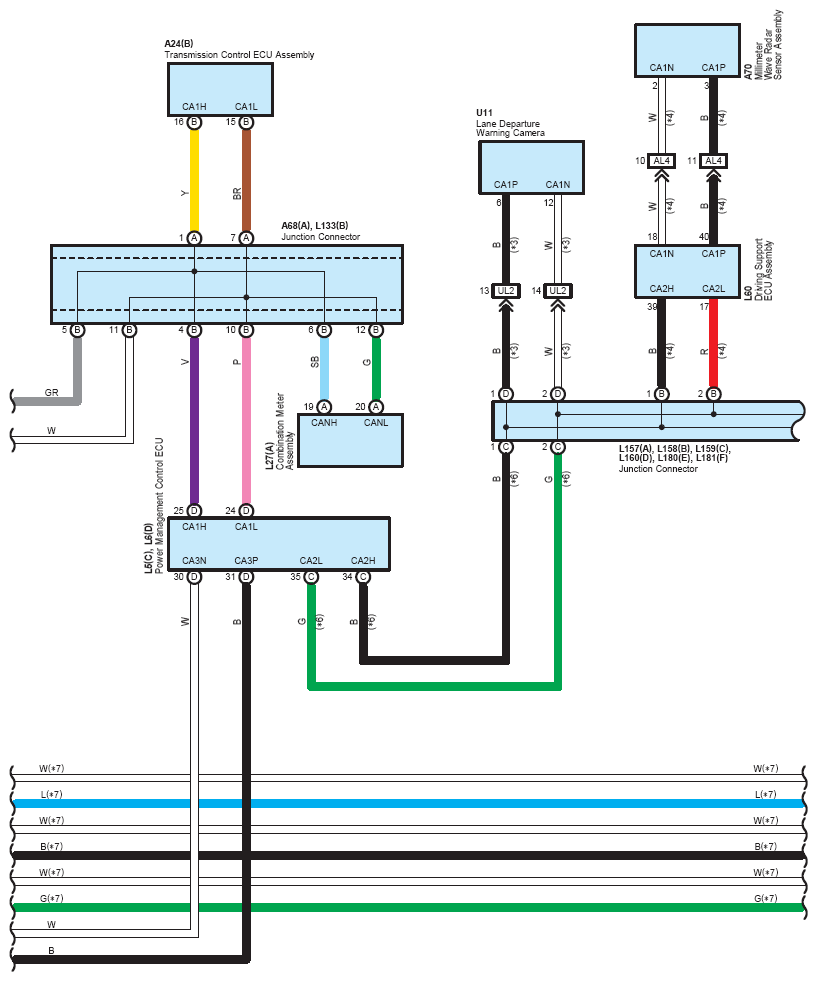

Fig 3: Multiplex Communication System (CAN) (3 Of 6)
G12214521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

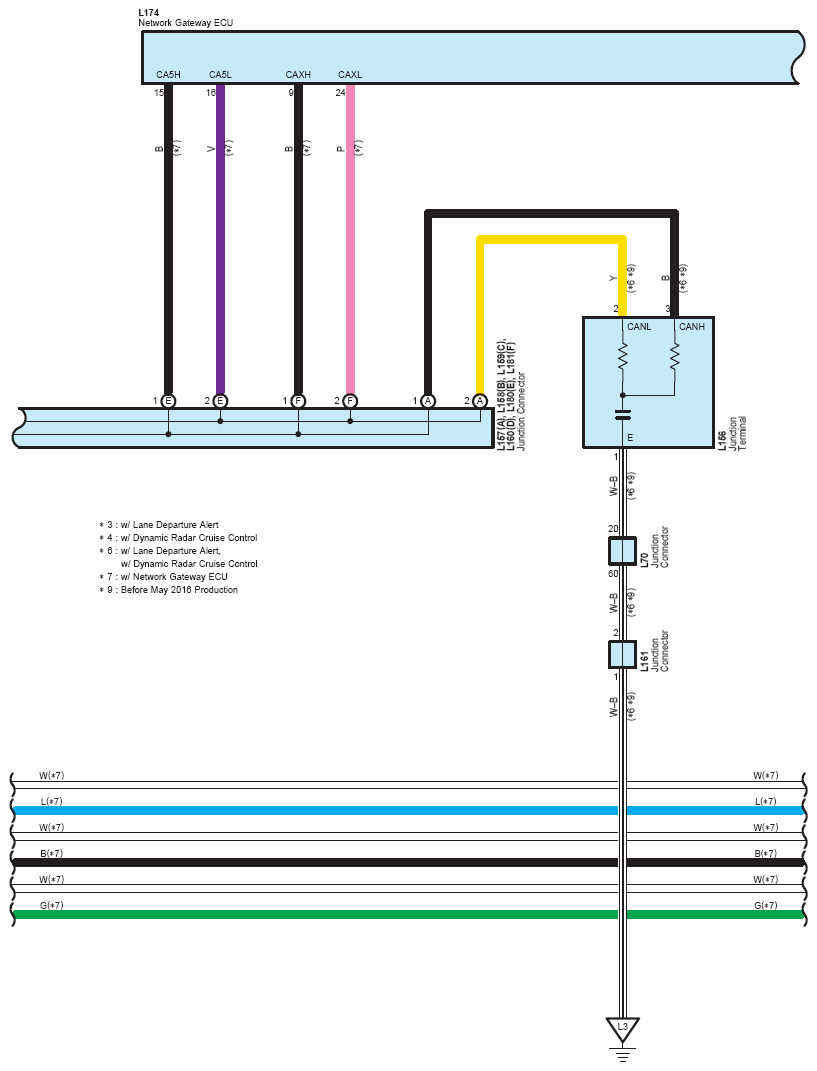

Fig 4: Multiplex Communication System (CAN) (4 Of 6)
G12214522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

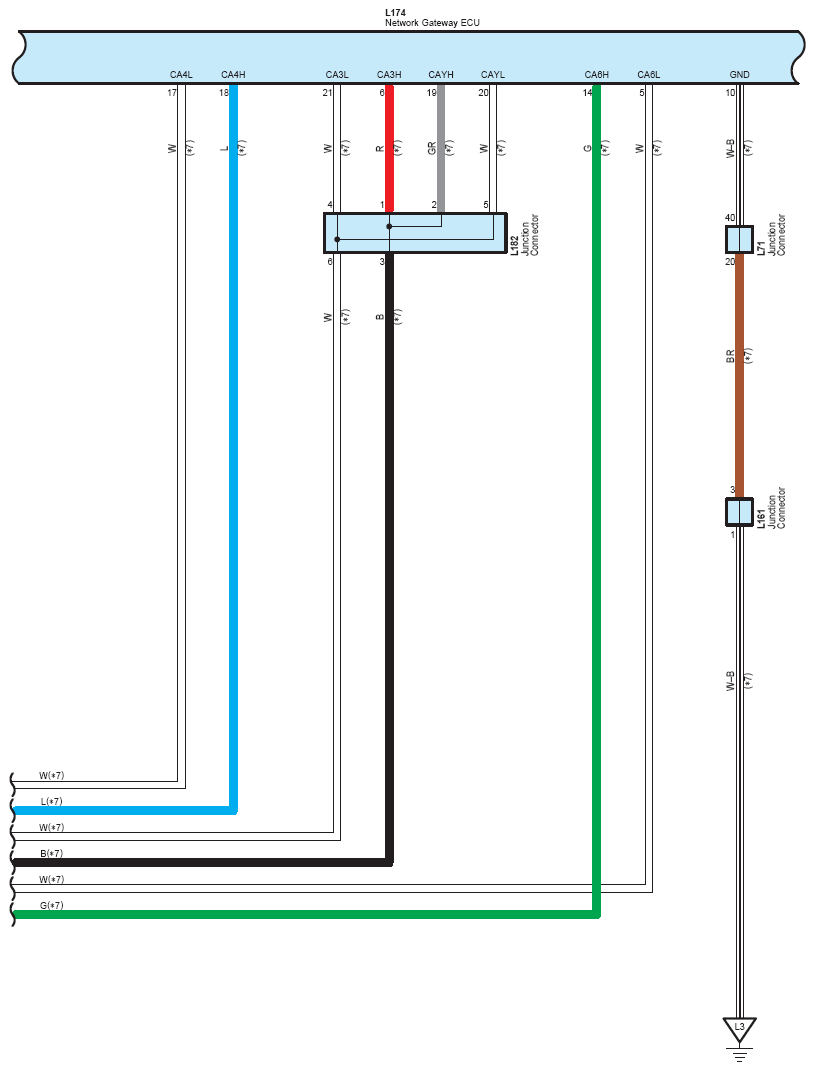

Fig 5: Multiplex Communication System (CAN) (5 Of 6)
G12214523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Multiplex Communication System (CAN) (6 Of 6)
G12214524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
