System Diagrams — 2017 Toyota Prius V Two Service Manual ~ FixVault

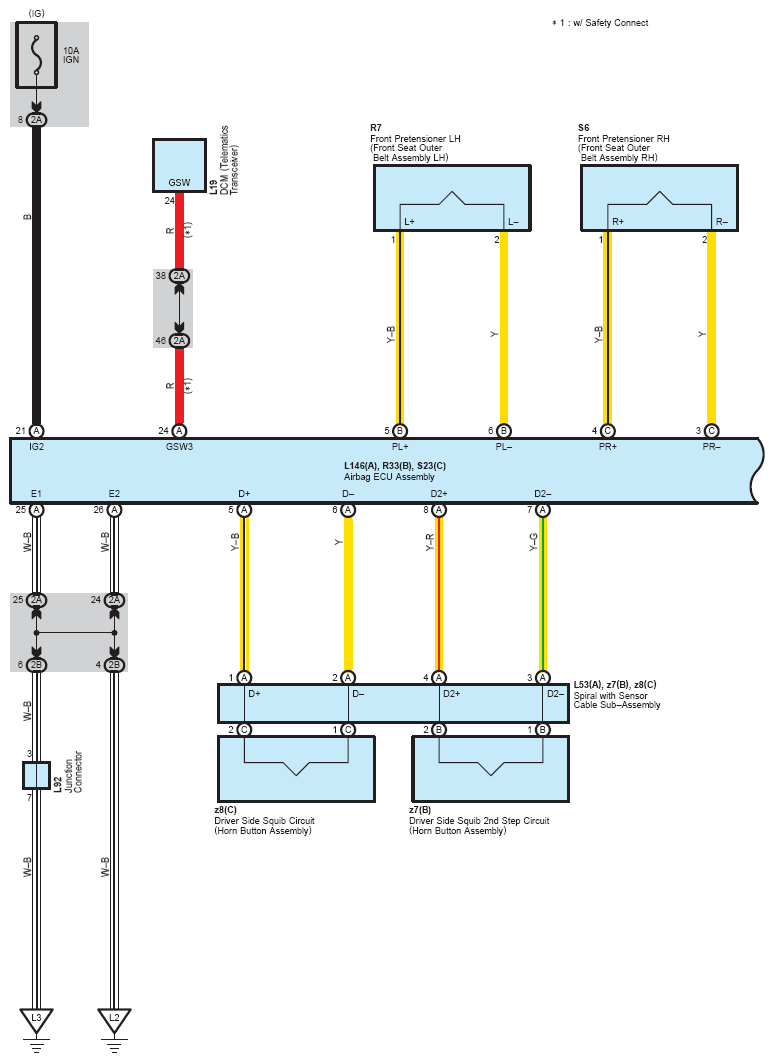

Fig 1: SRS (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

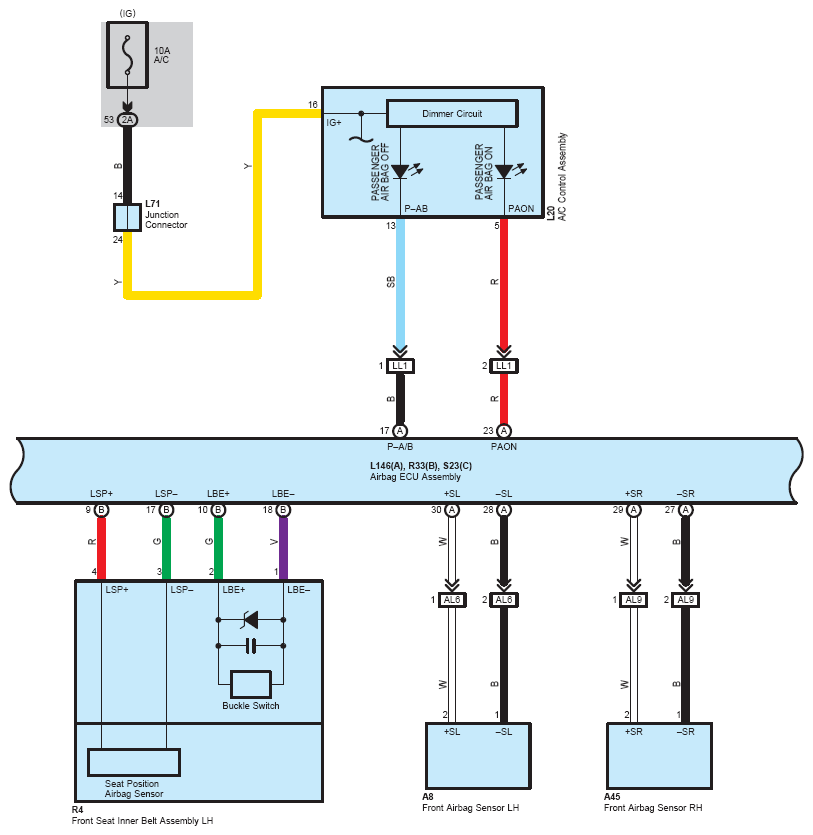

Fig 2: SRS (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

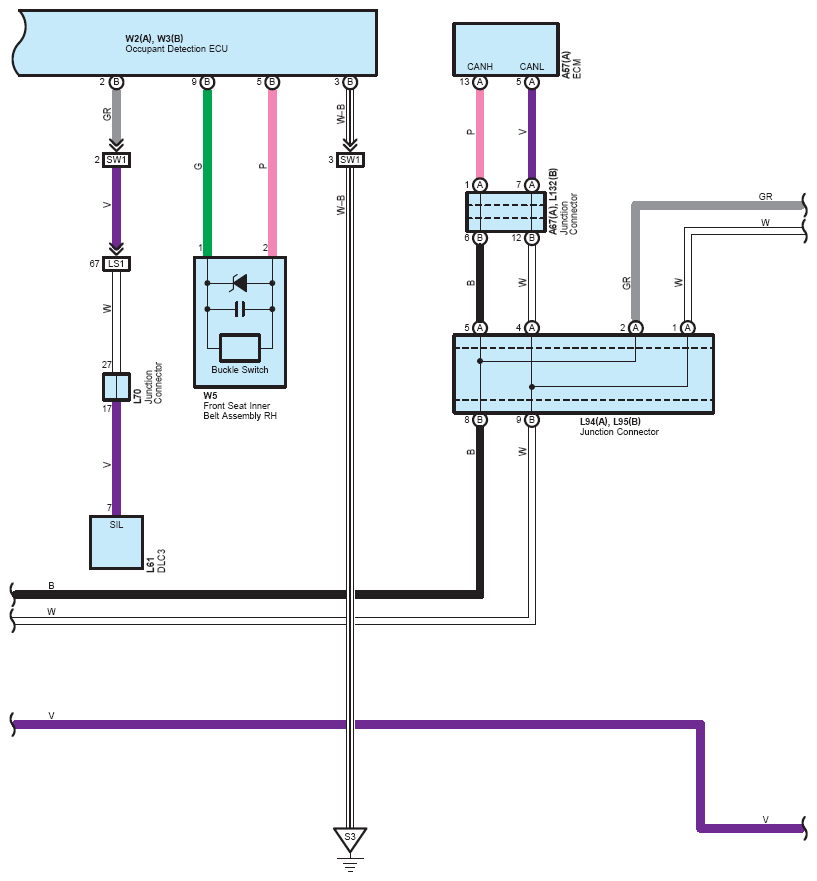

Fig 3: SRS (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

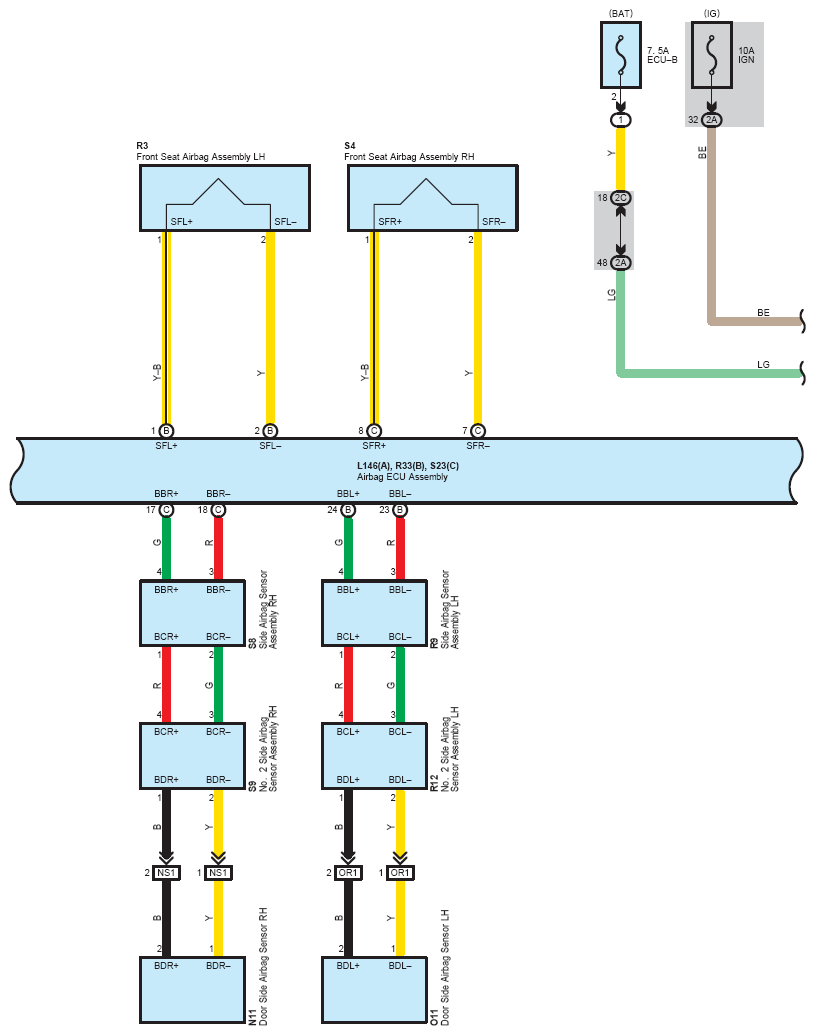

Fig 4: SRS (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

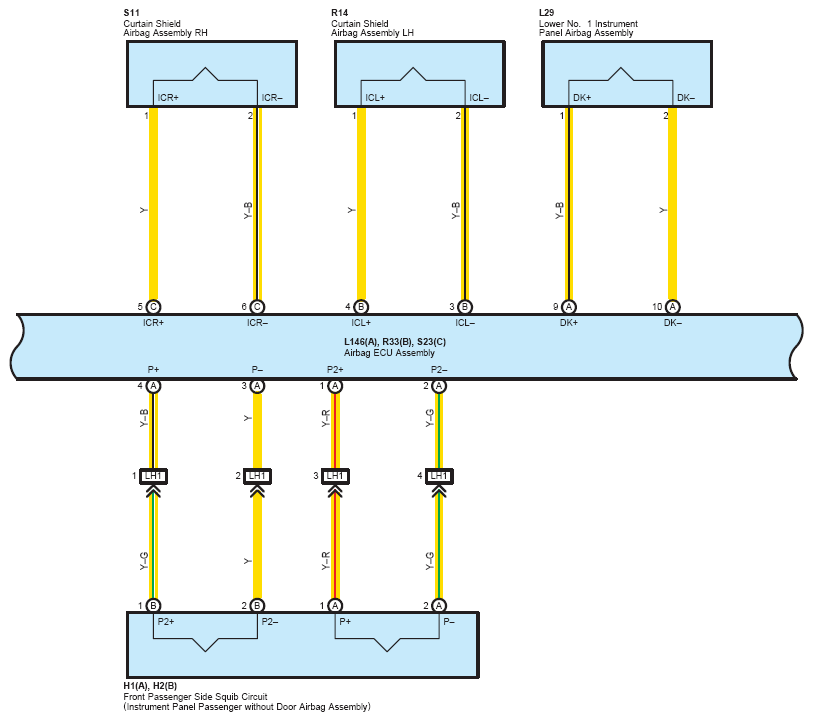

Fig 5: SRS (5 Of 7)

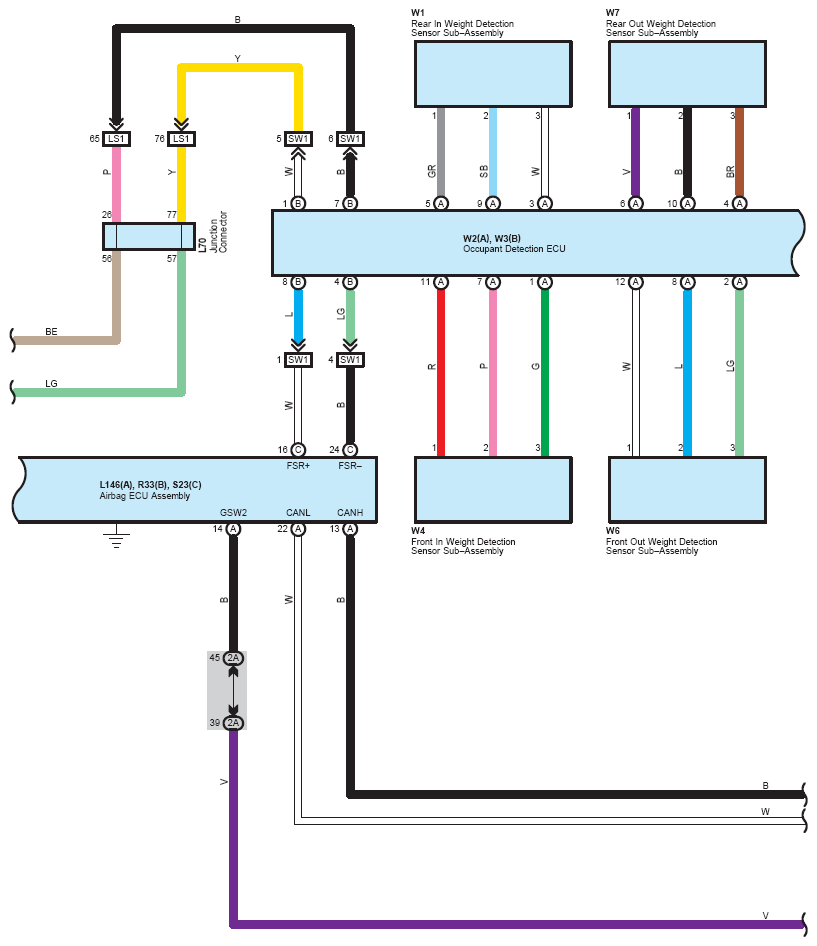

Fig 6: SRS (6 Of 7)

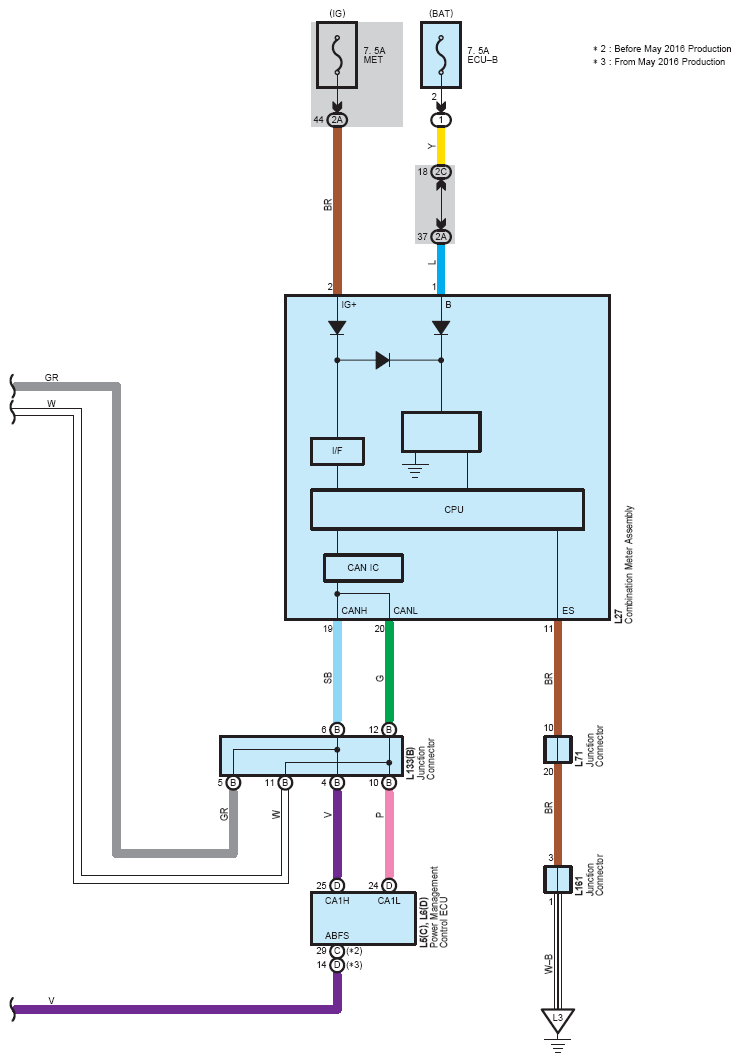

Fig 7: SRS (7 Of 7)
