Accelerator Pedal
›
Components [08/2016 - ]
Components [08/2016 - ]

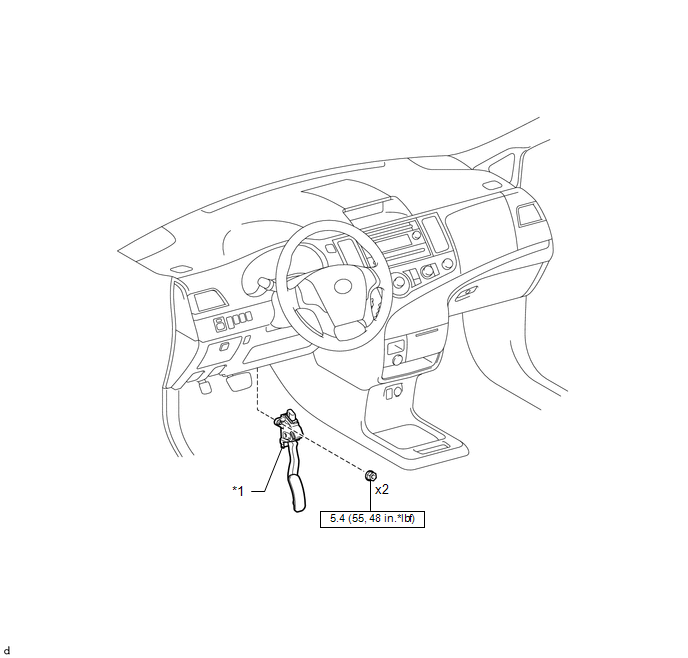

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
ACCELERATOR PEDAL SENSOR ASSEMBLY
-
-
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
