Removal [08/2016 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  2. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

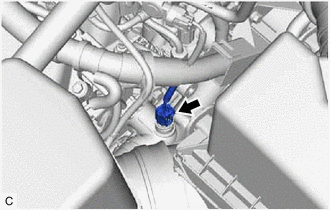

    1. Disconnect the engine coolant temperature sensor connector.
      GTY682748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

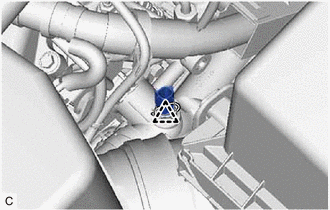

    2. Remove the clip and engine coolant temperature sensor from the water outlet.
      GTY659021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.
