Components [08/2016 - ]

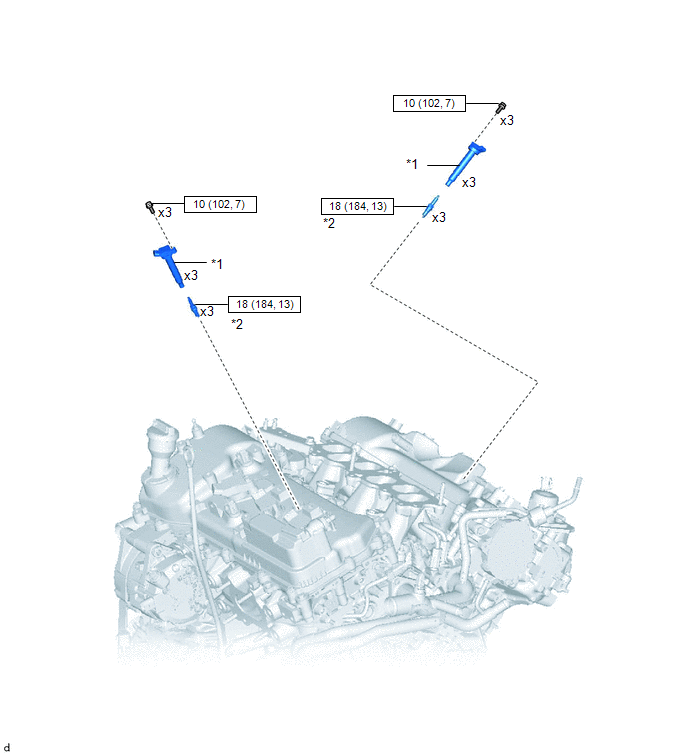

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications
GTY731620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL ASSEMBLY *2 SPARK PLUG
N*m (kgf*cm, ft.*lbf): Specified torque - -
