Removal [08/2016 - ]: Procedure

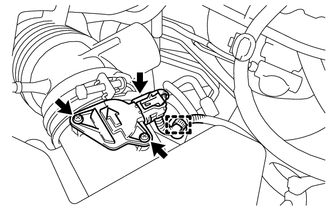

  1. REMOVE MASS AIR FLOW METER
    1. Disengage the wire harness clamp.
    2. Disconnect the mass air flow meter connector.
    3. Remove the 2 screws and mass air flow meter from the air cleaner cap sub-assembly.
      NOTE:

      If the mass air flow meter has been struck or dropped, replace it.

      GTY695415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
