Components [08/2016 - ]

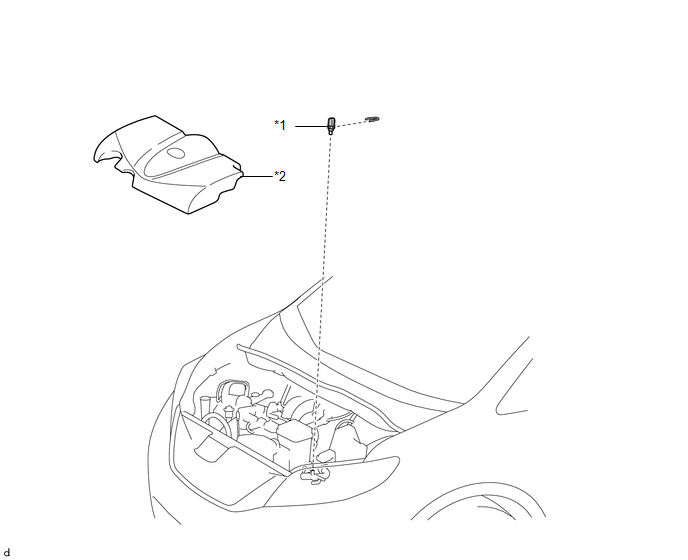

Fig 1: Engine Coolant Temperature Sensor Replacement Components

GTY696441

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

ENGINE COOLANT TEMPERATURE SENSOR

*2

V-BANK COVER SUB-ASSEMBLY
