Removal [08/2016 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  2. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 14

  3. REMOVE AIR FUEL RATIO SENSOR (for Bank 2)
    1. Using SST, remove the air fuel ratio sensor (for bank 2) from the exhaust manifold sub-assembly LH (TWC: front catalyst).
      • SST: 09224-00012
      NOTE:

      If the air fuel ratio sensor (for bank 2) has been struck or dropped, replace it.

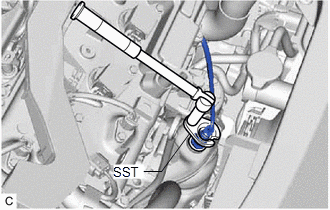

      GTY635504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
  5. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 4

  6. REMOVE NO. 2 ENGINE UNDER COVER (for AWD)

    Refer to PROCEDURE - Step 5

  7. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to REMOVAL [12/2015 - ]

  8. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 7

  9. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 8

  10. REMOVE MANIFOLD STAY

    Refer to PROCEDURE - Step 9

  11. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 10

  12. REMOVE EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1)

    Refer to PROCEDURE - Step 11

  13. REMOVE AIR FUEL RATIO SENSOR (for Bank 1)
    1. Using SST, remove the air fuel ratio sensor (for bank 1) from the exhaust manifold sub-assembly RH (TWC: front catalyst).
      GTY695780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00012
      NOTE:

      If the air fuel ratio sensor (for bank 1) has been struck or dropped, replace it.
