System Diagrams

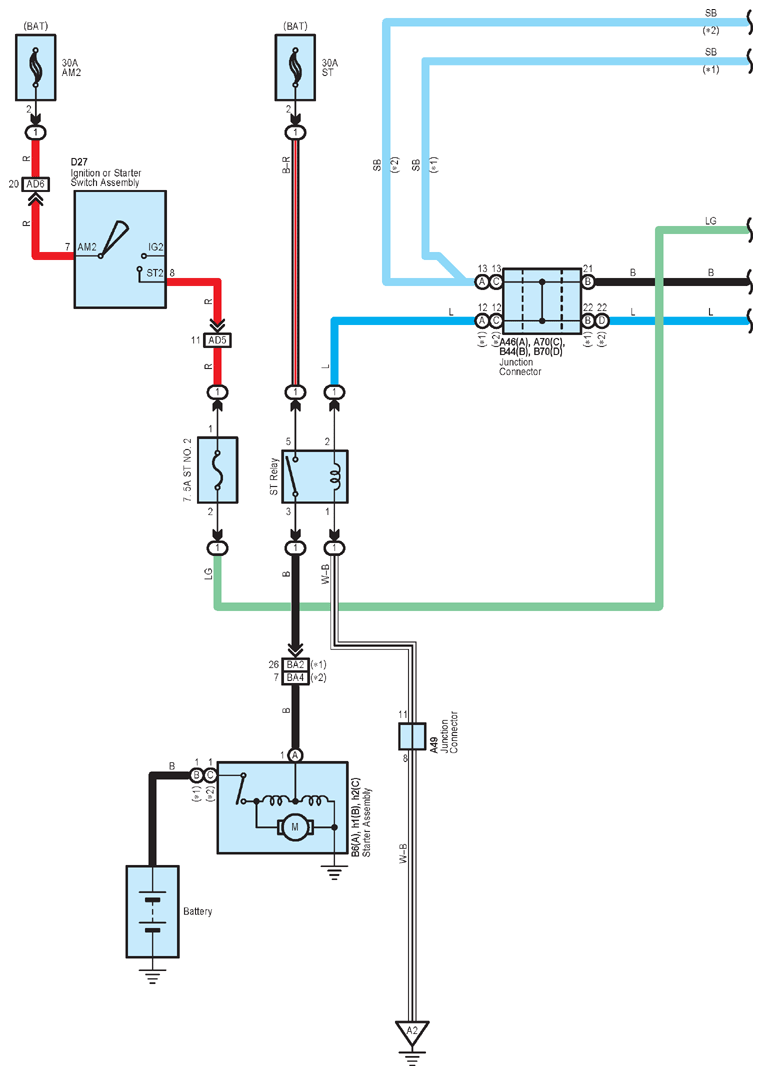

Fig 1: Starting (W/O Smart Key System) (1 Of 2)
G12221840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

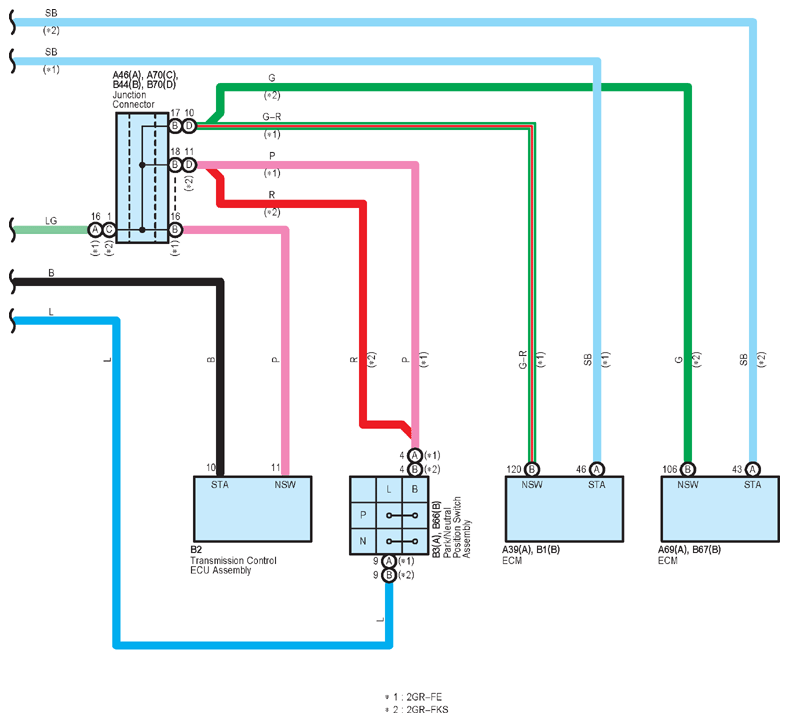

Fig 2: Starting (W/O Smart Key System) (2 Of 2)
G12221841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
