Automatic Light Control: Connectors

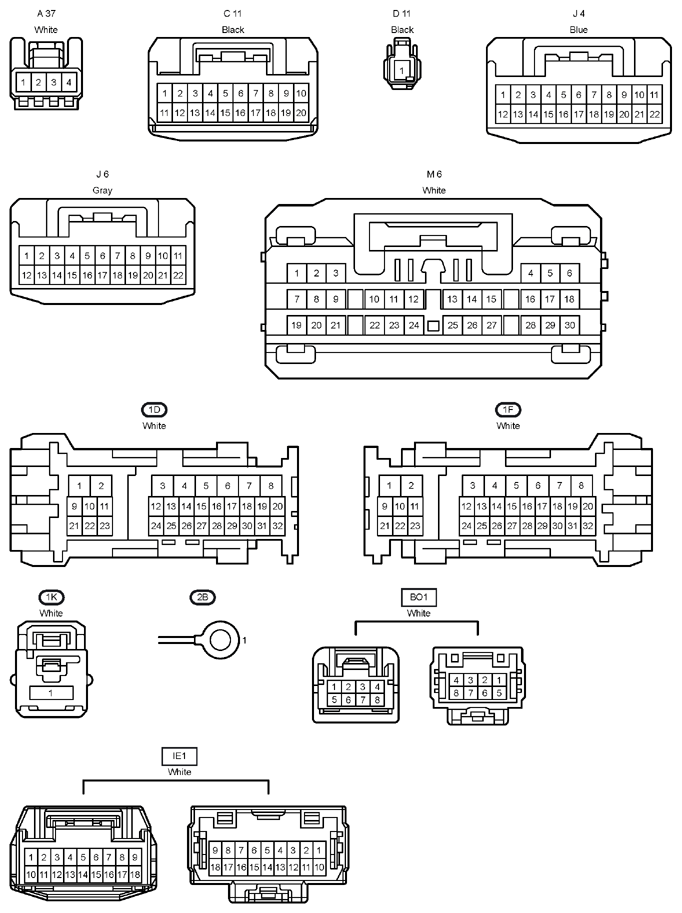

Fig 1: Connectors
G12222891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
