Back-Up Light: Connectors

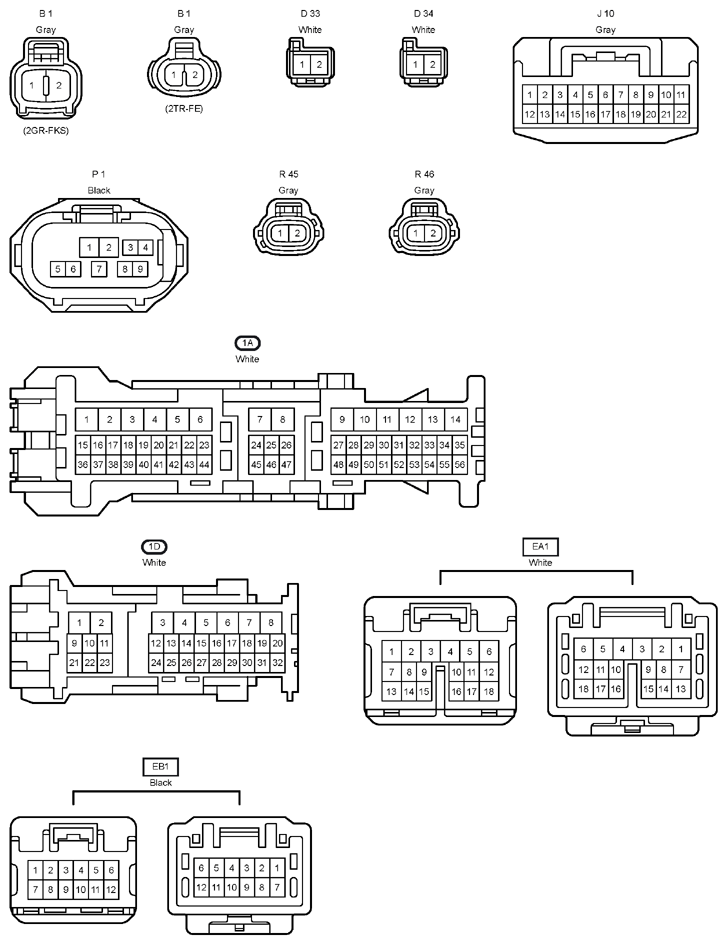

Fig 1: Connectors (1 Of 2)
G12222924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

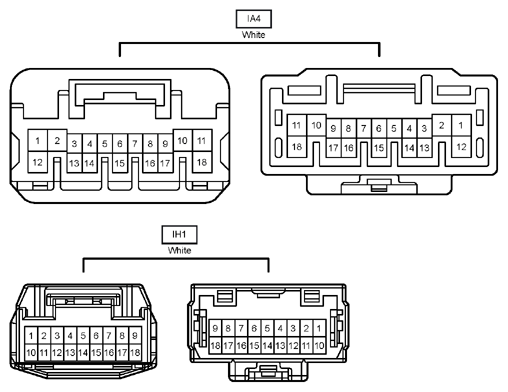

Fig 2: Connectors (2 Of 2)
G12222925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
