System Diagrams

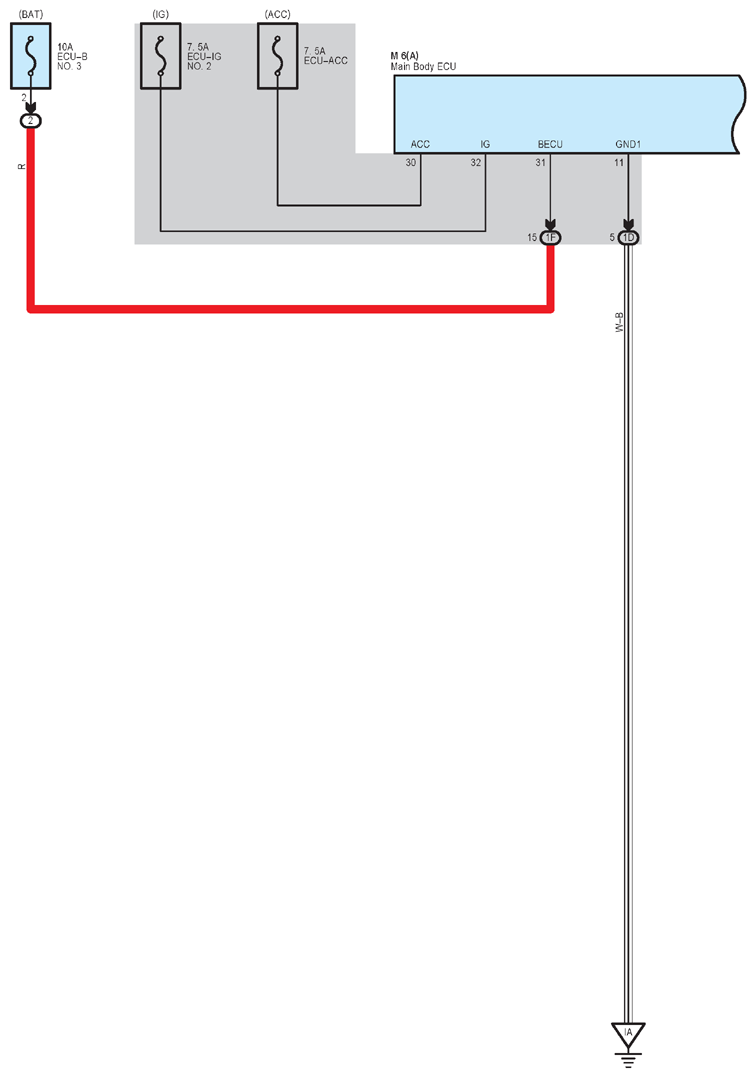

Fig 1: Front Fog Light (1 Of 4)
G12223053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

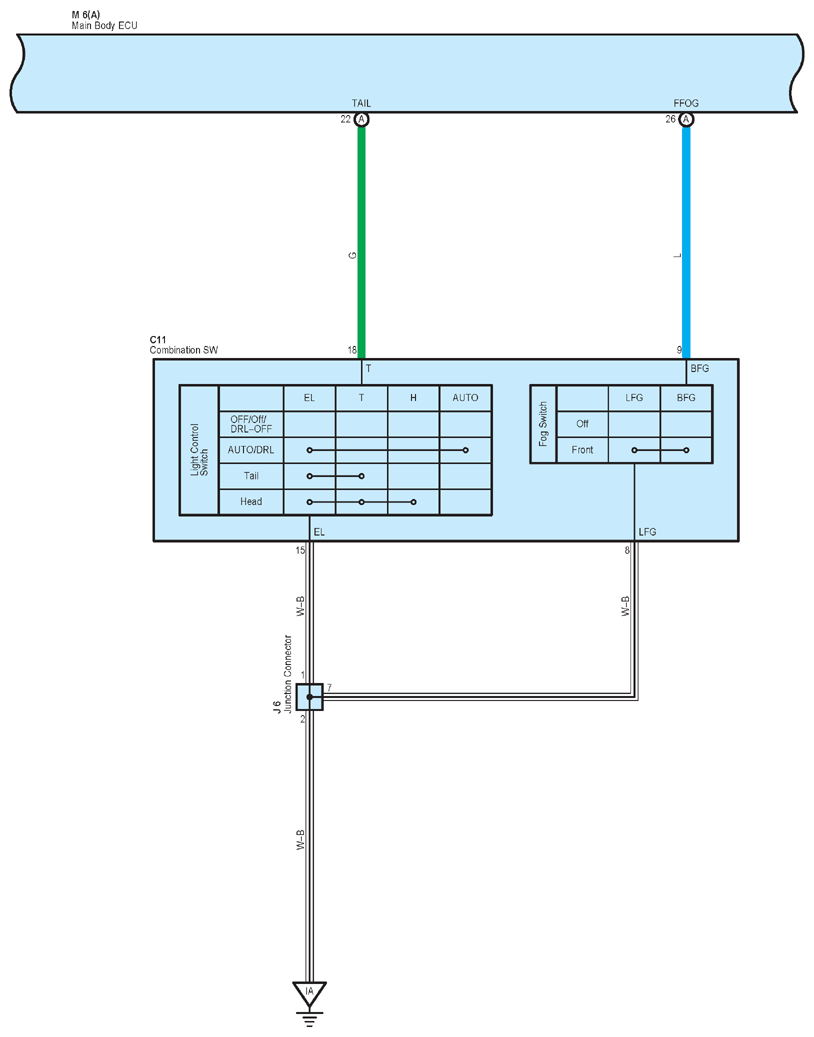

Fig 2: Front Fog Light (2 Of 4)
G12223054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

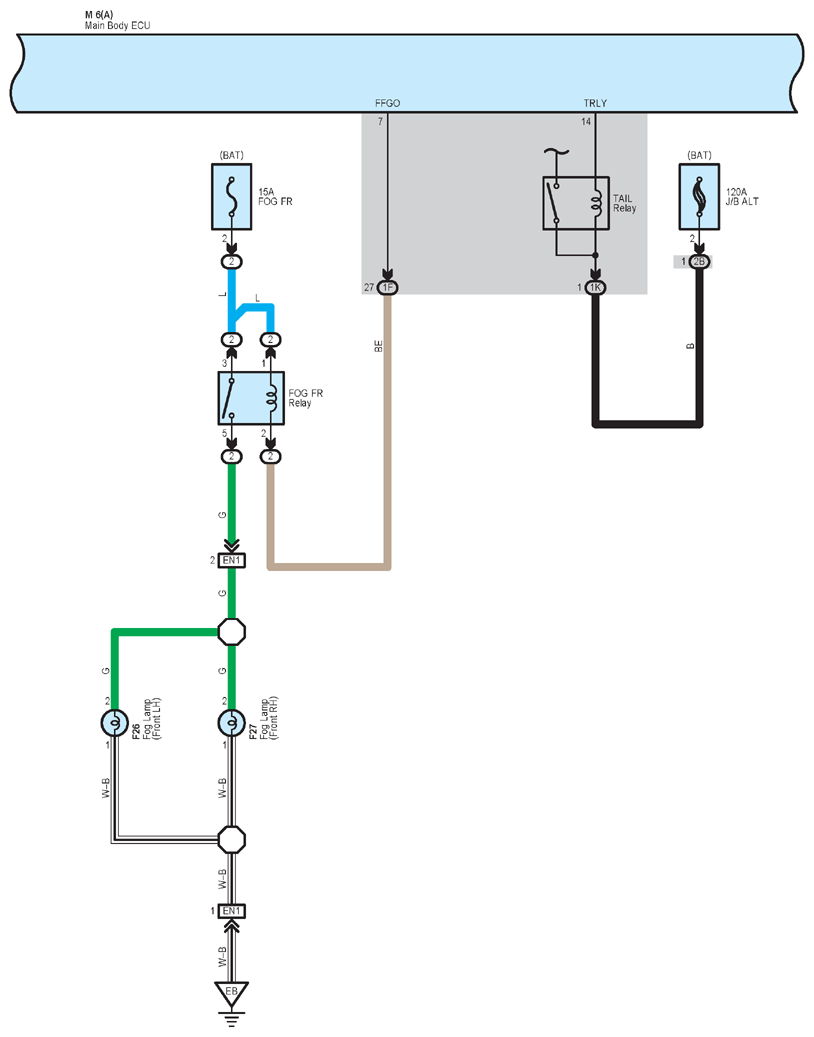

Fig 3: Front Fog Light (3 Of 4)
G12223055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

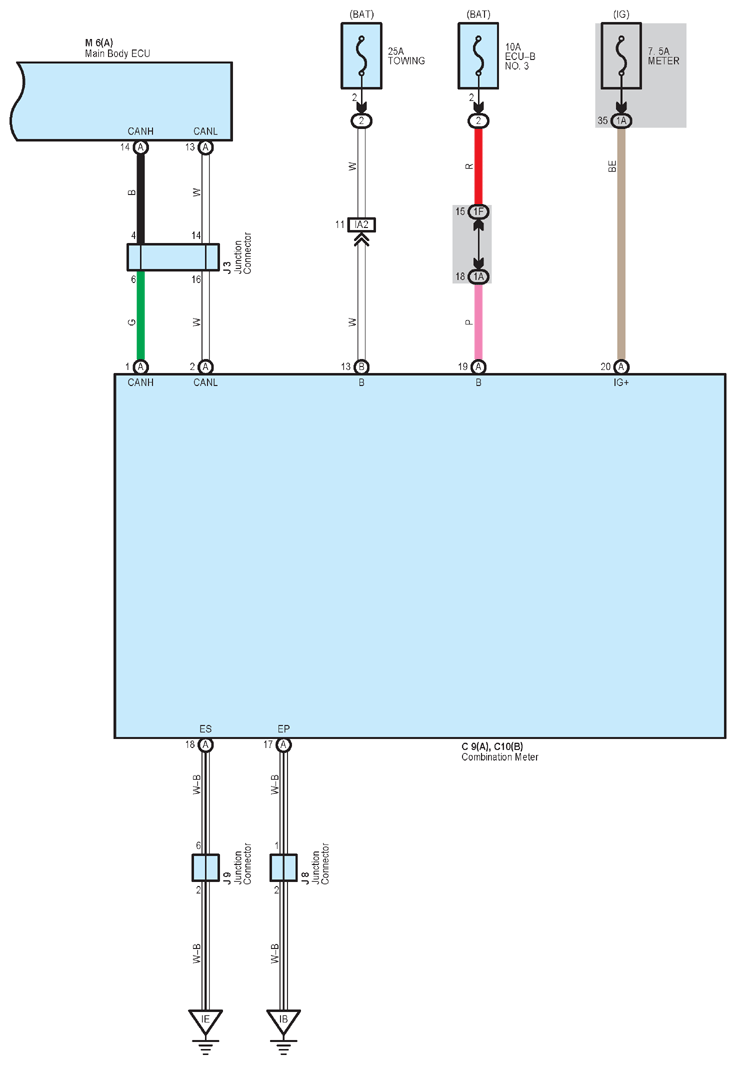

Fig 4: Front Fog Light (4 Of 4)
G12223056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
