Key Reminder (W/O Smart Key System): Connectors

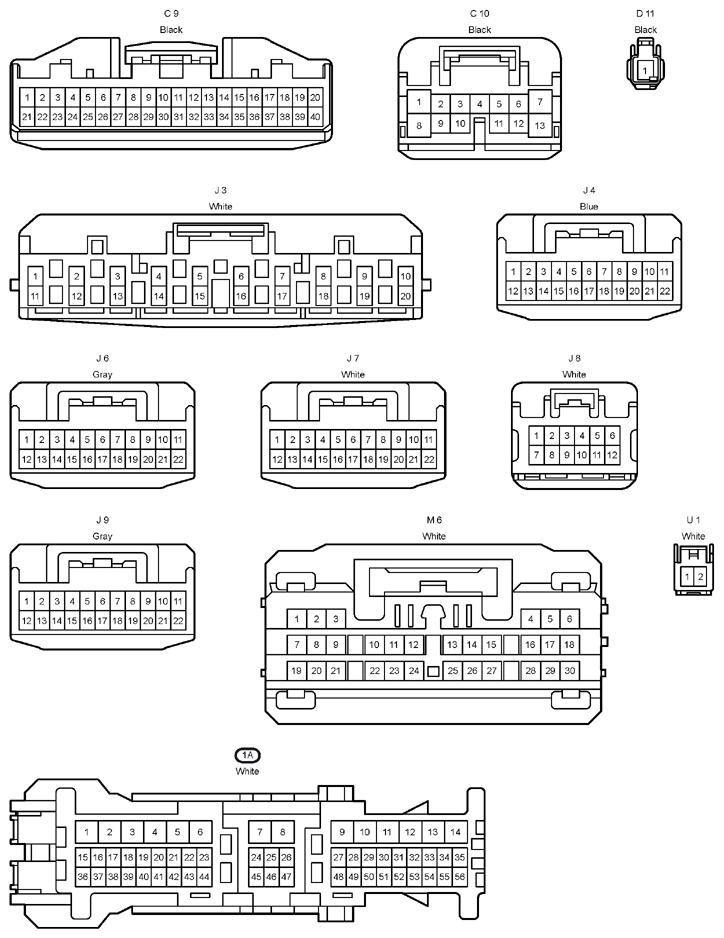

Fig 1: Connectors (1 Of 2)
G12223110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

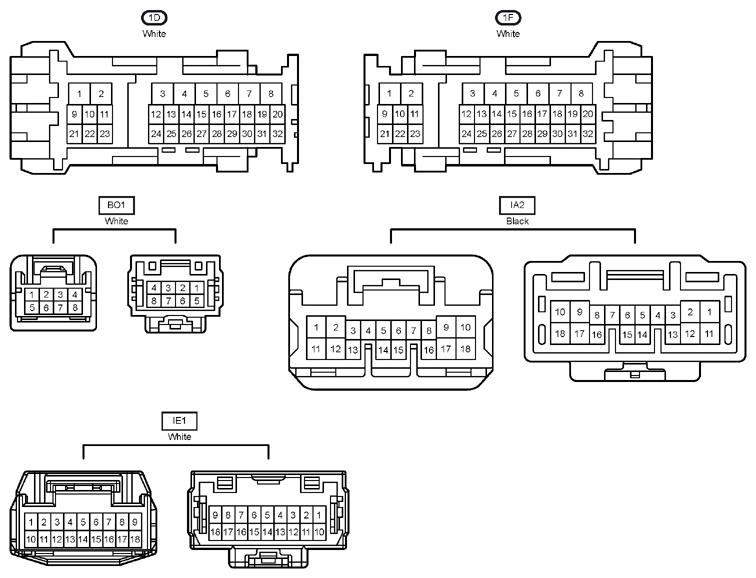

Fig 2: Connectors (2 Of 2)
G12223111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
