Tacoma TRD Pro, Automatic Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Multiplex Communication System (CAN)
›
System Diagrams
System Diagrams

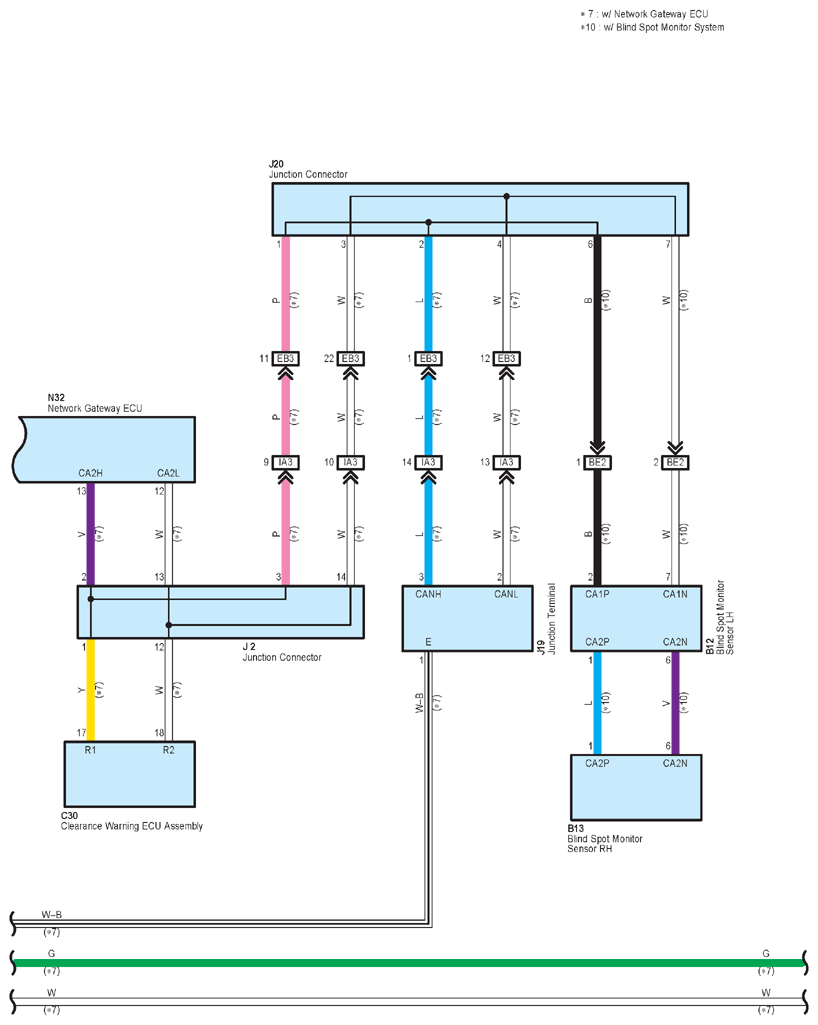

Fig 1: Multiplex Communication System (CAN) (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

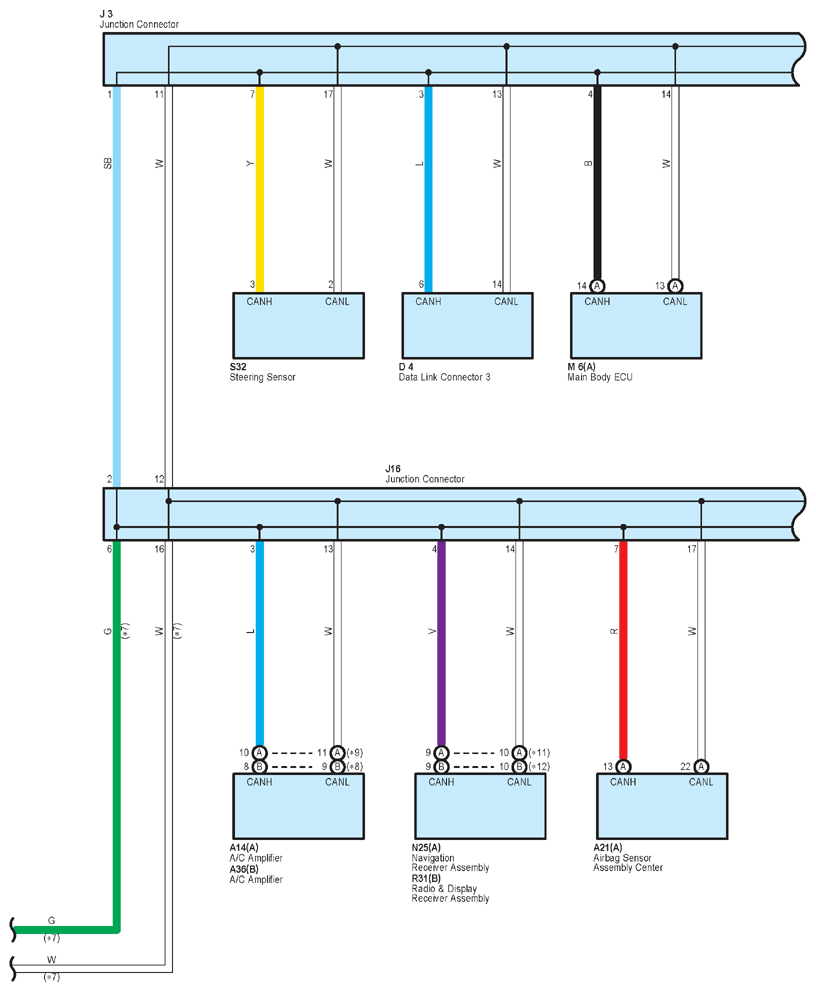

Fig 2: Multiplex Communication System (CAN) (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

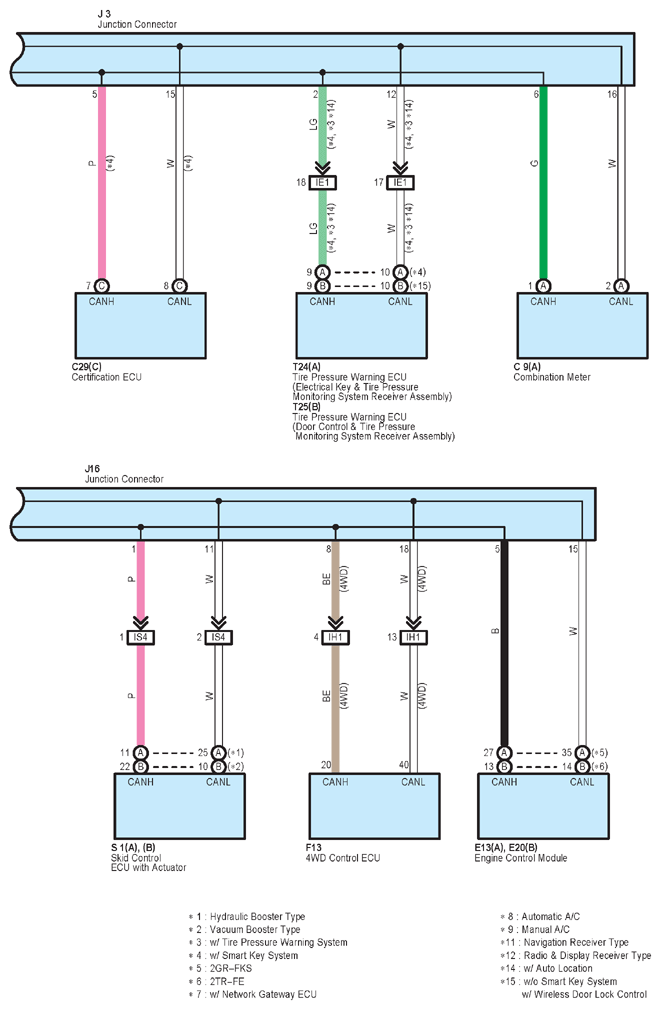

Fig 3: Multiplex Communication System (CAN) (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

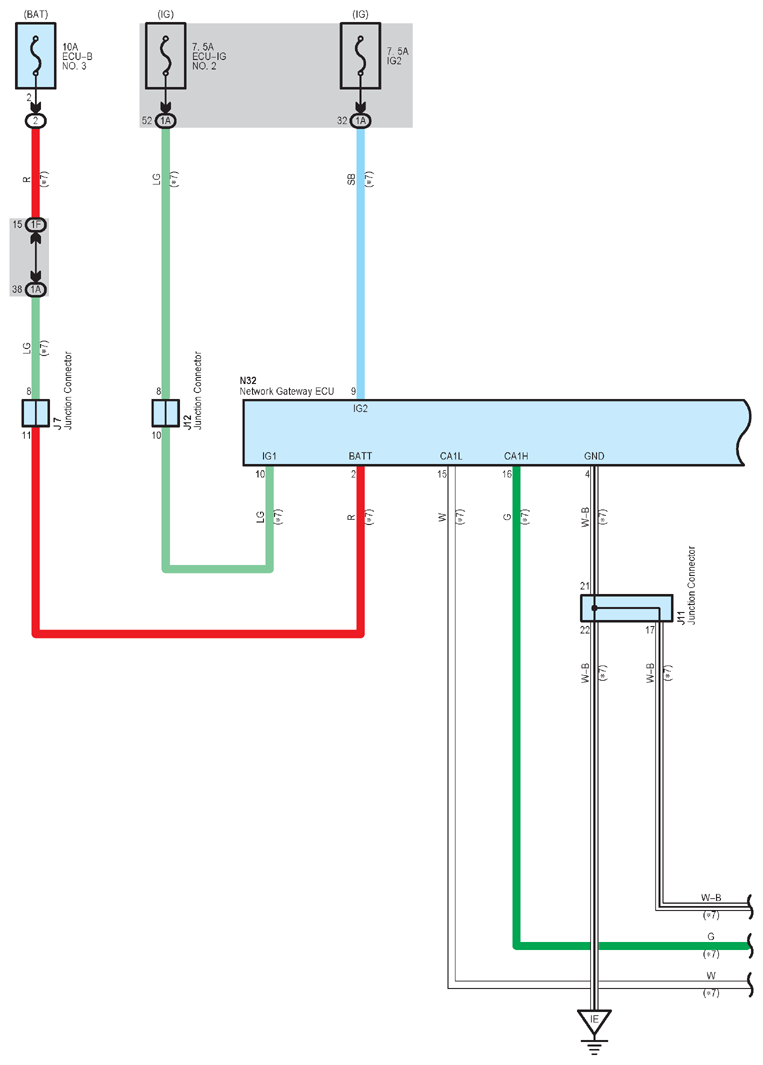

Fig 4: Multiplex Communication System (CAN) (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
