Toyota
›
2017
›
Tacoma TRD Pro, Standard Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Cargo Light
›
System Diagrams
System Diagrams

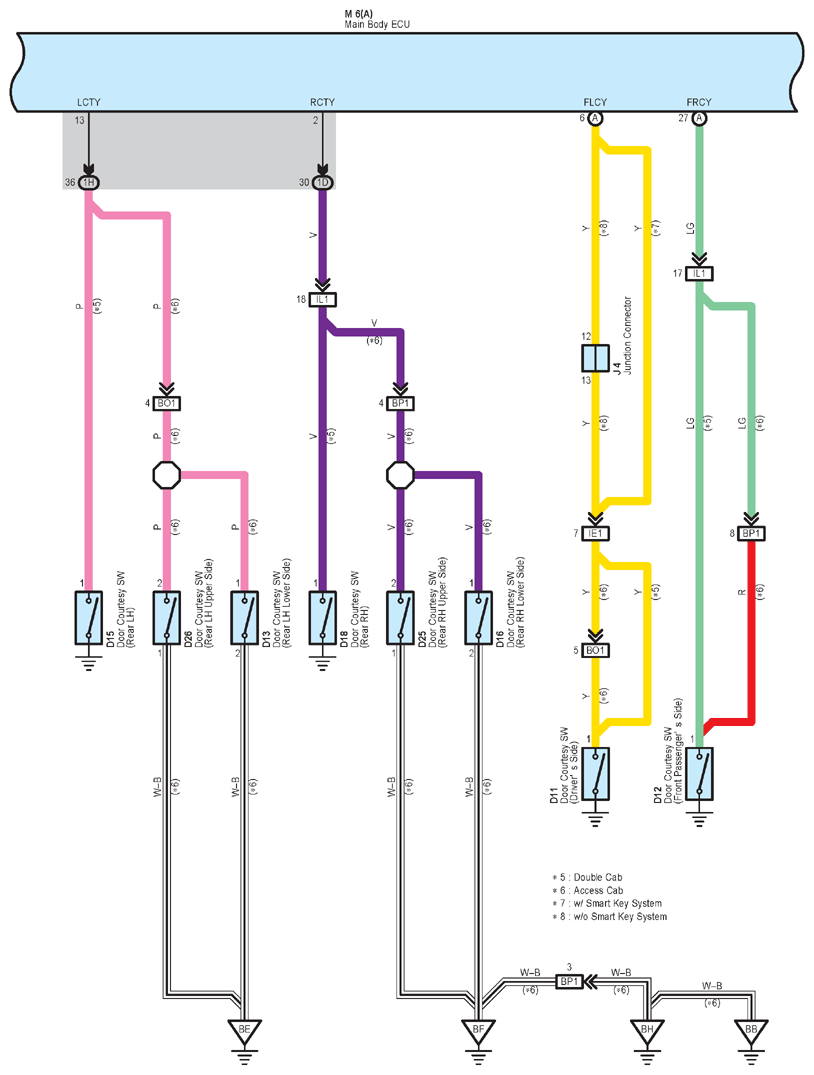

Fig 1: Cargo Light (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

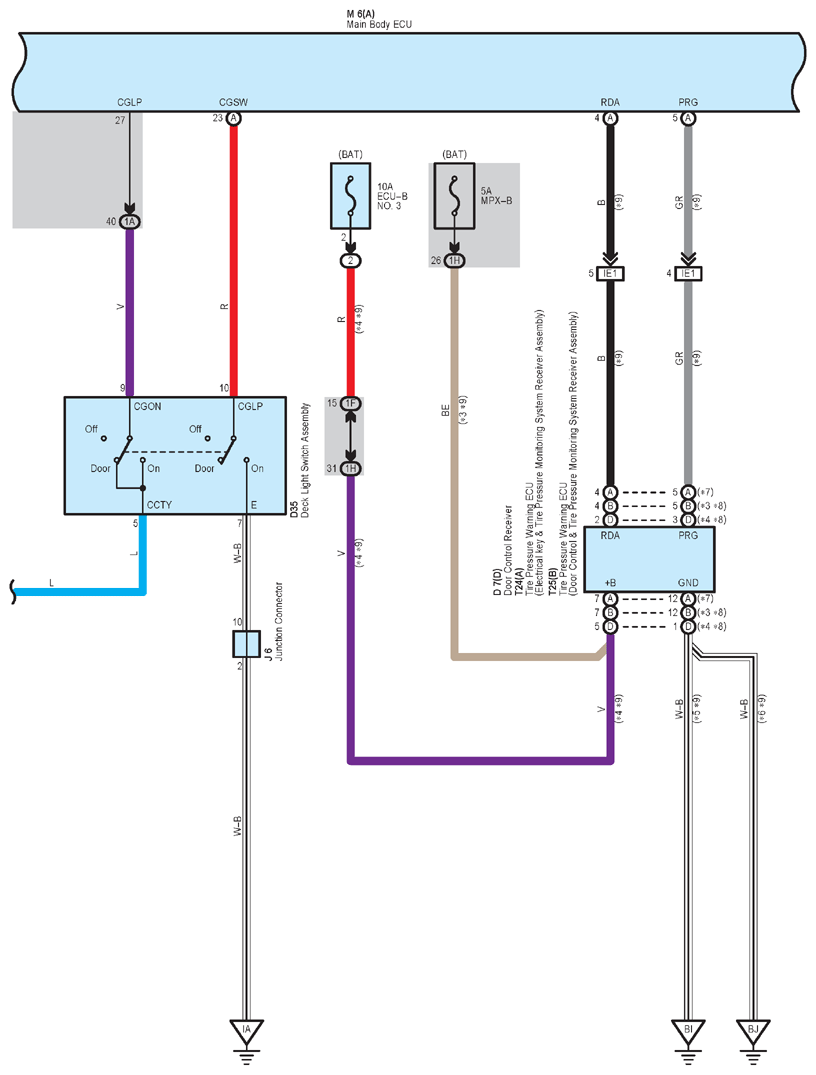

Fig 2: Cargo Light (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

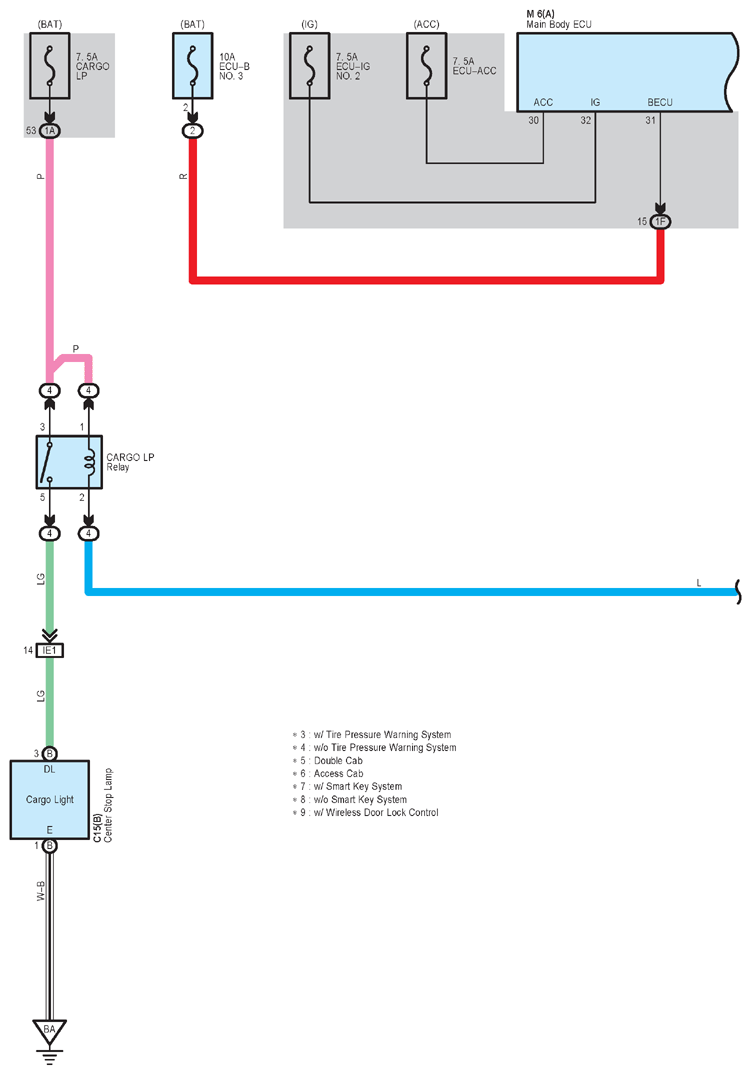

Fig 3: Cargo Light (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

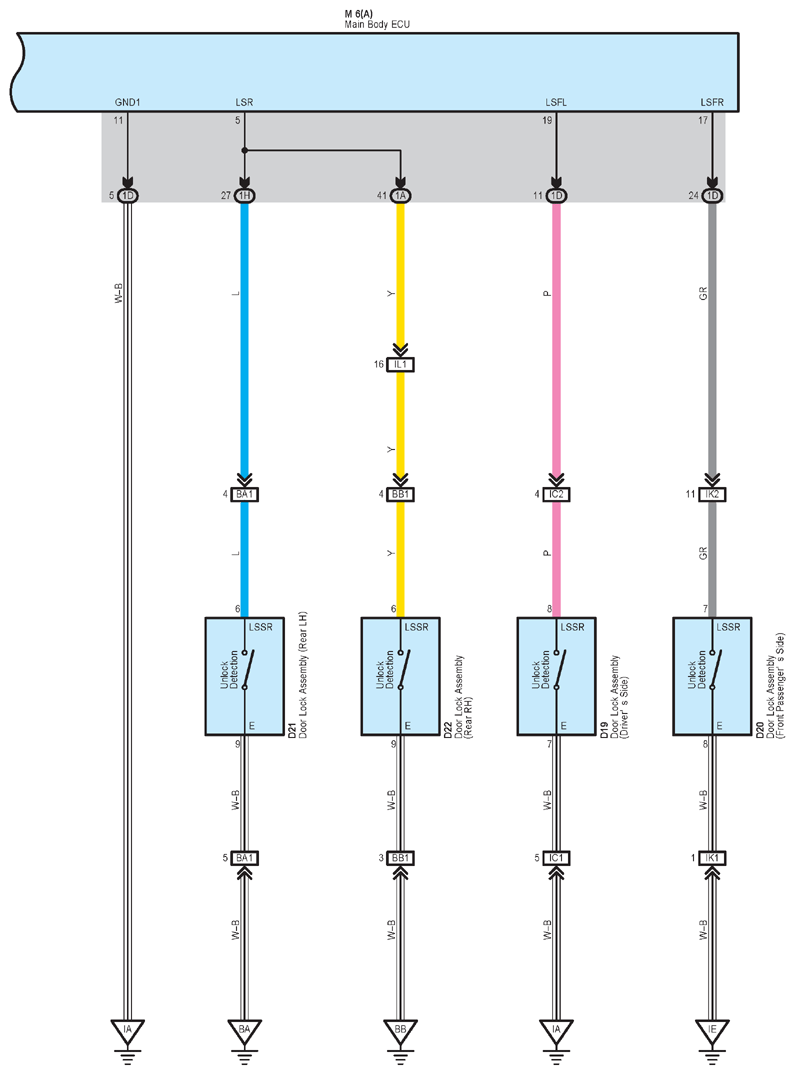

Fig 4: Cargo Light (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
