System Diagrams — 2017 Toyota Tacoma TRD Pro, Standard Trans Service Manual ~ FixVault

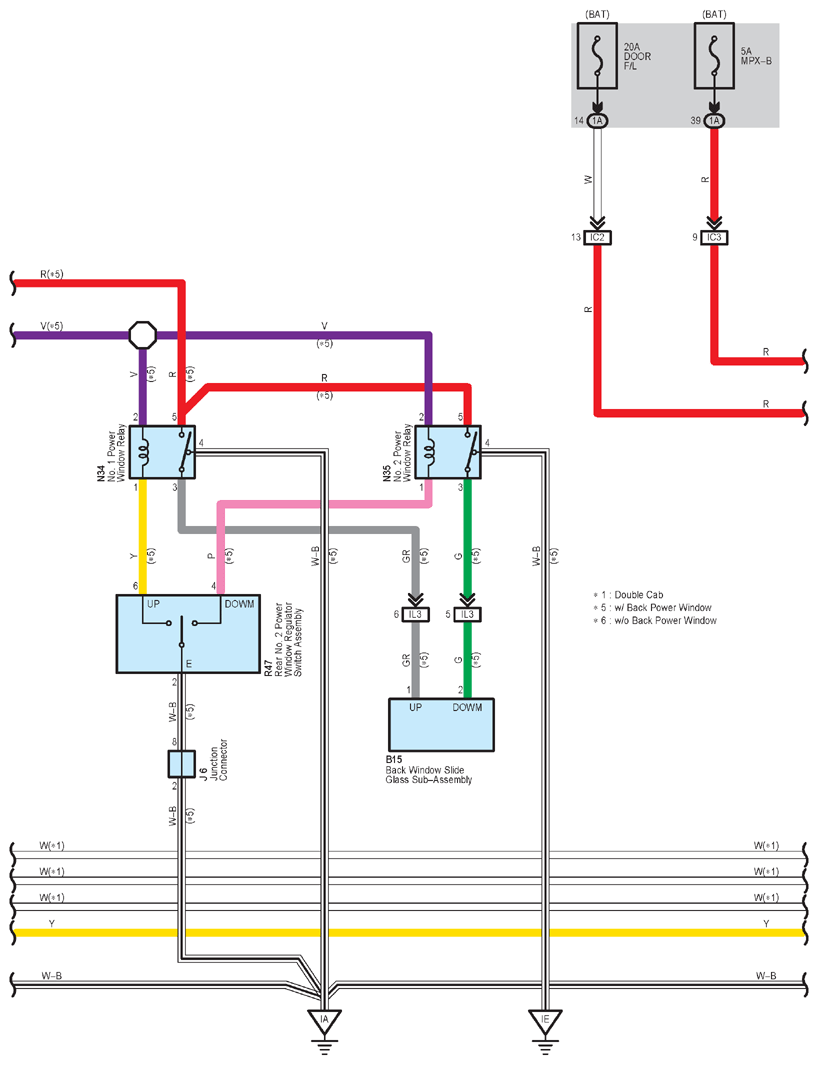

Fig 1: Power Window (W/Jam Protection) (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

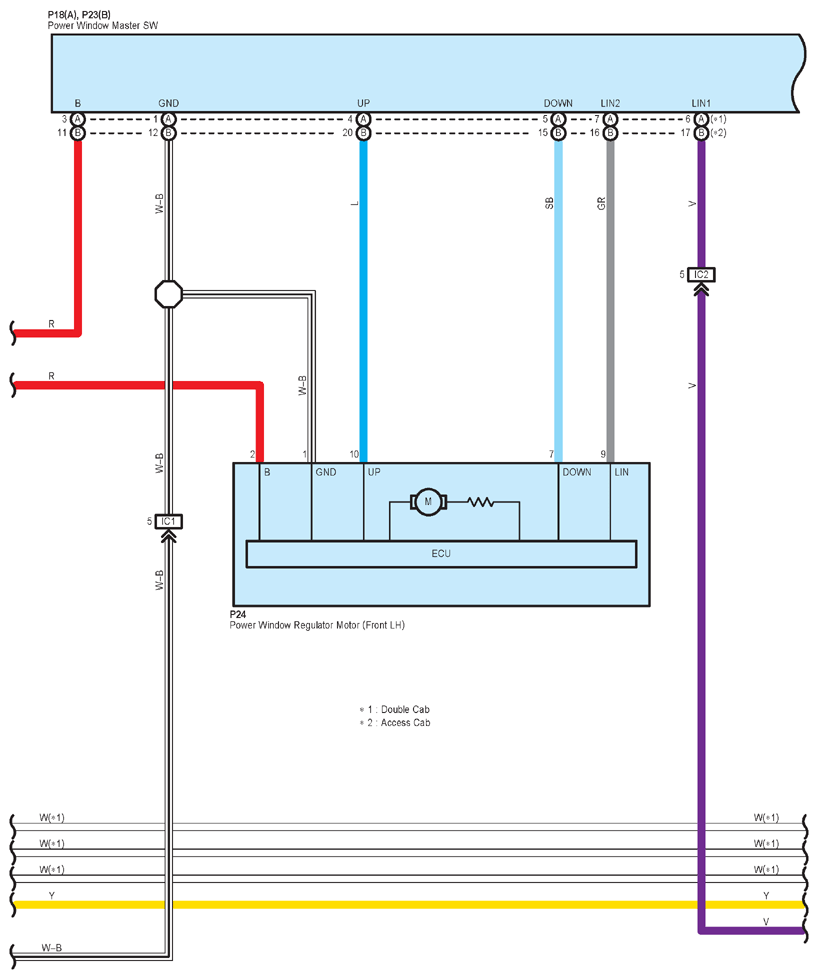

Fig 2: Power Window (W/Jam Protection) (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

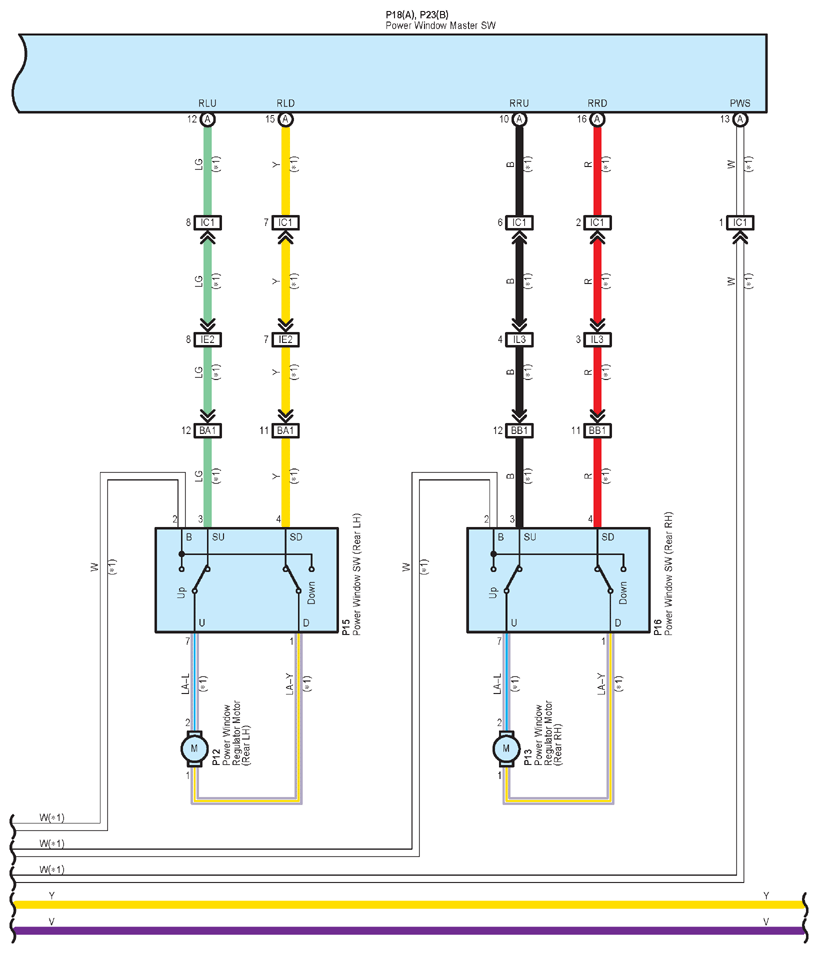

Fig 3: Power Window (W/Jam Protection) (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

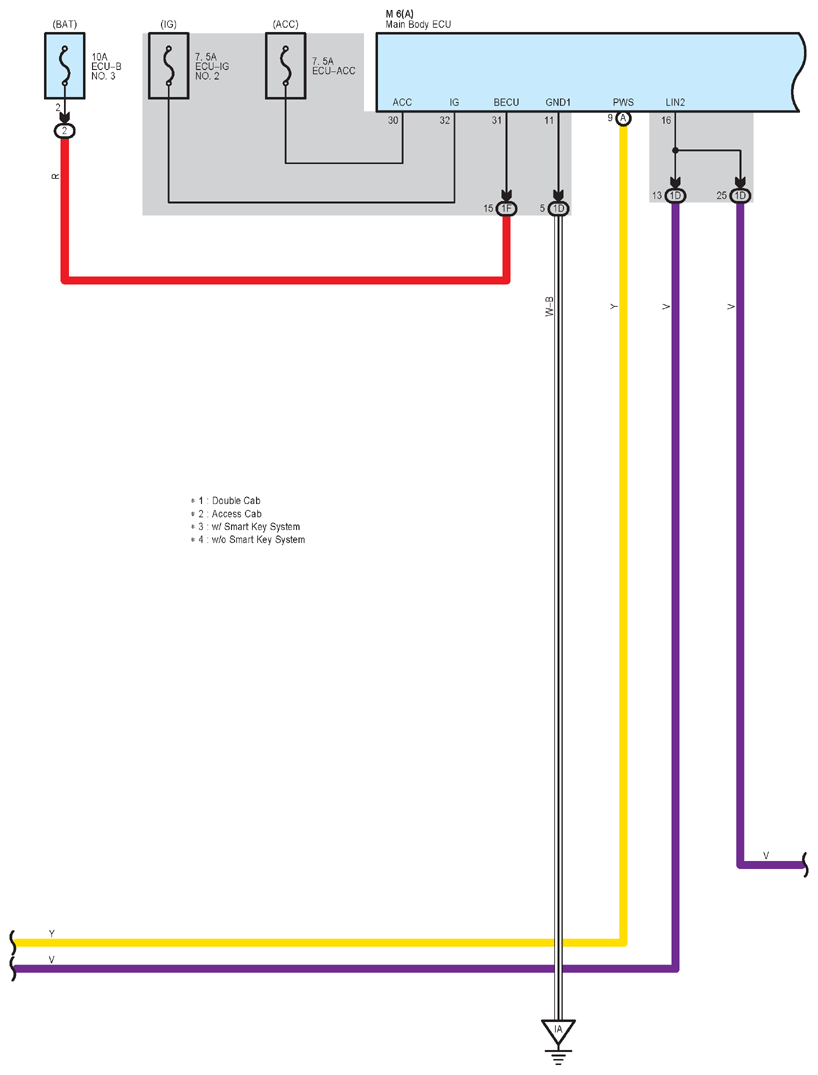

Fig 4: Power Window (W/Jam Protection) (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

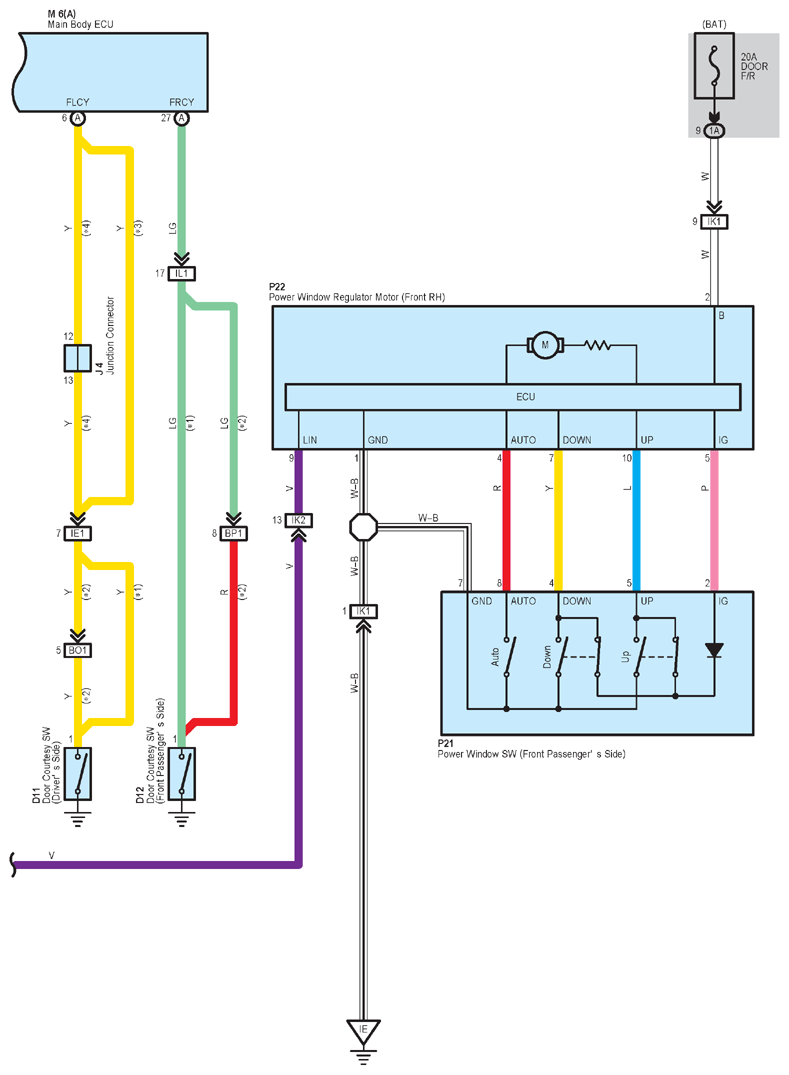

Fig 5: Power Window (W/Jam Protection) (5 Of 6)

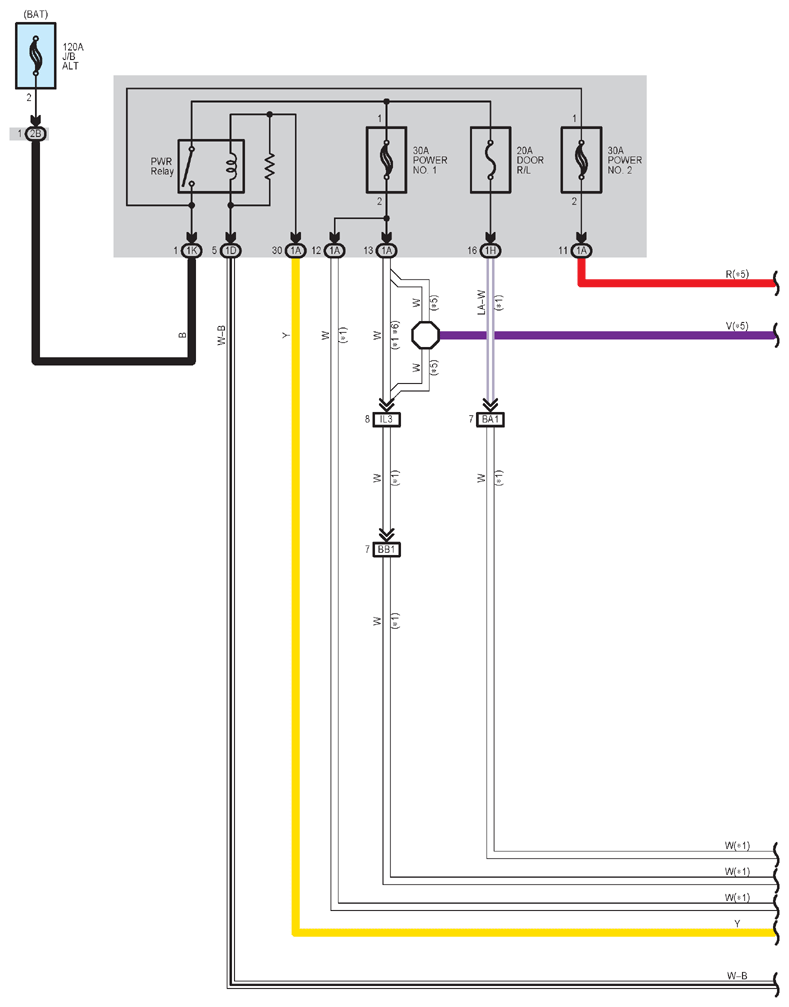

Fig 6: Power Window (W/Jam Protection) (6 Of 6)
