Stop Light
›
System Diagrams
System Diagrams

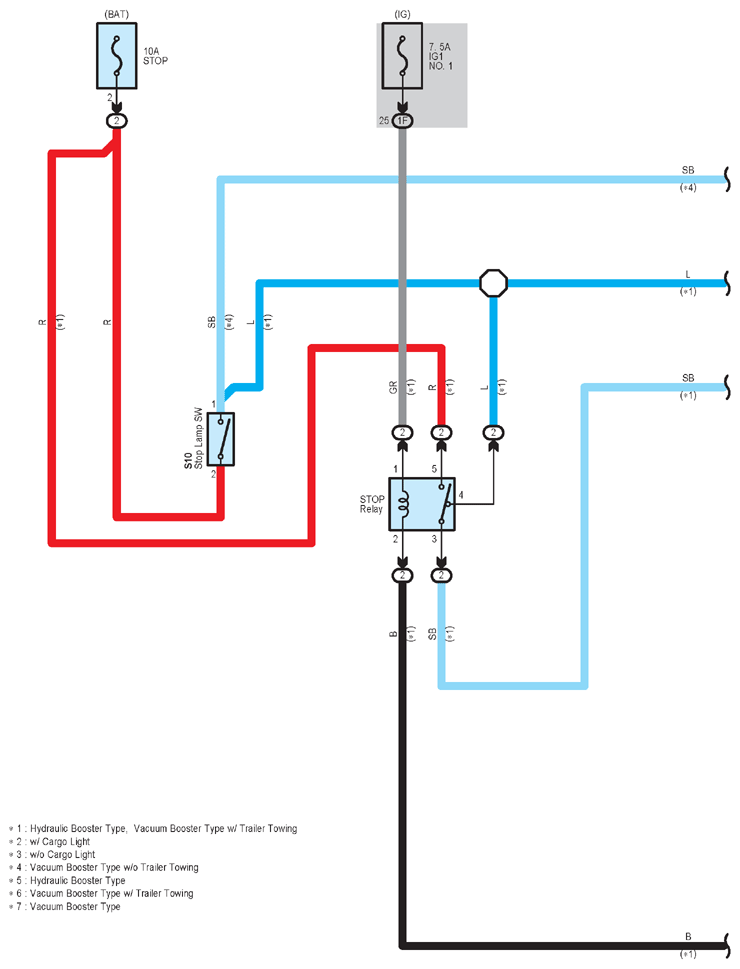

Fig 1: Stop Light (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

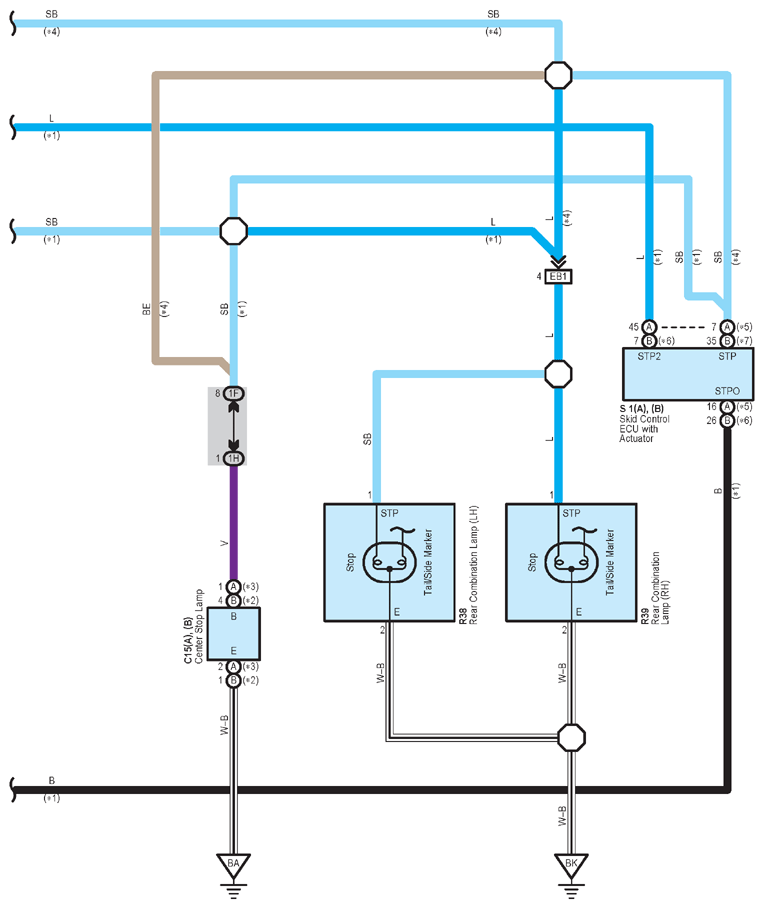

Fig 2: Stop Light (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
