System Diagrams

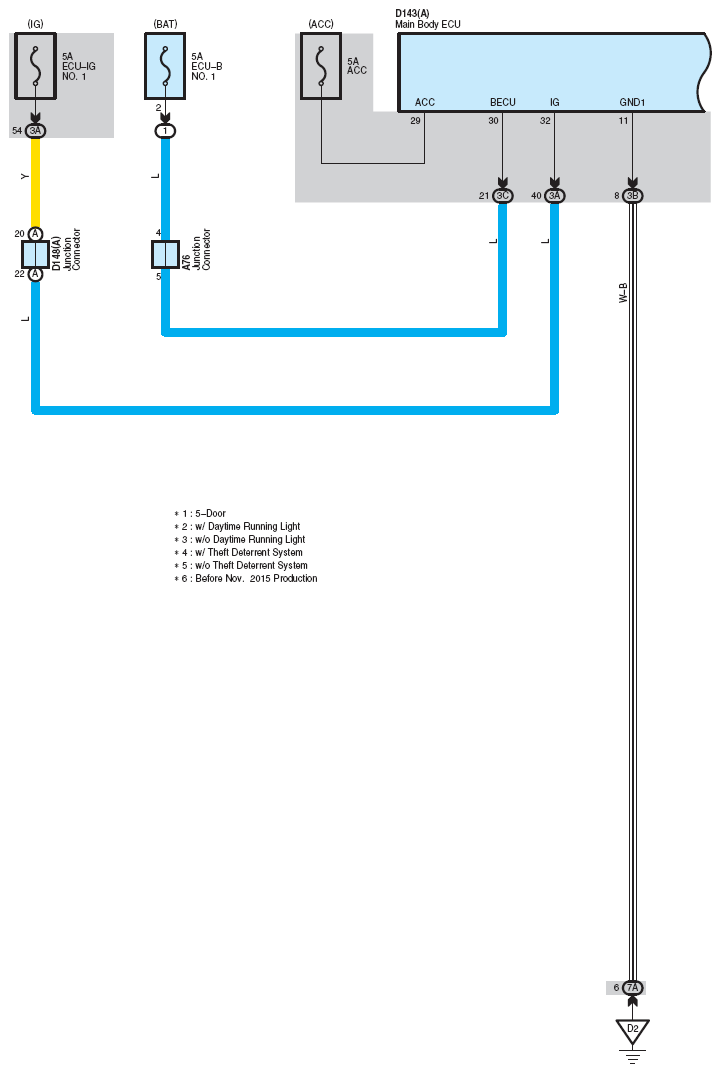

Fig 1: Interior Light - Hatchback (1 Of 3)

G12220081

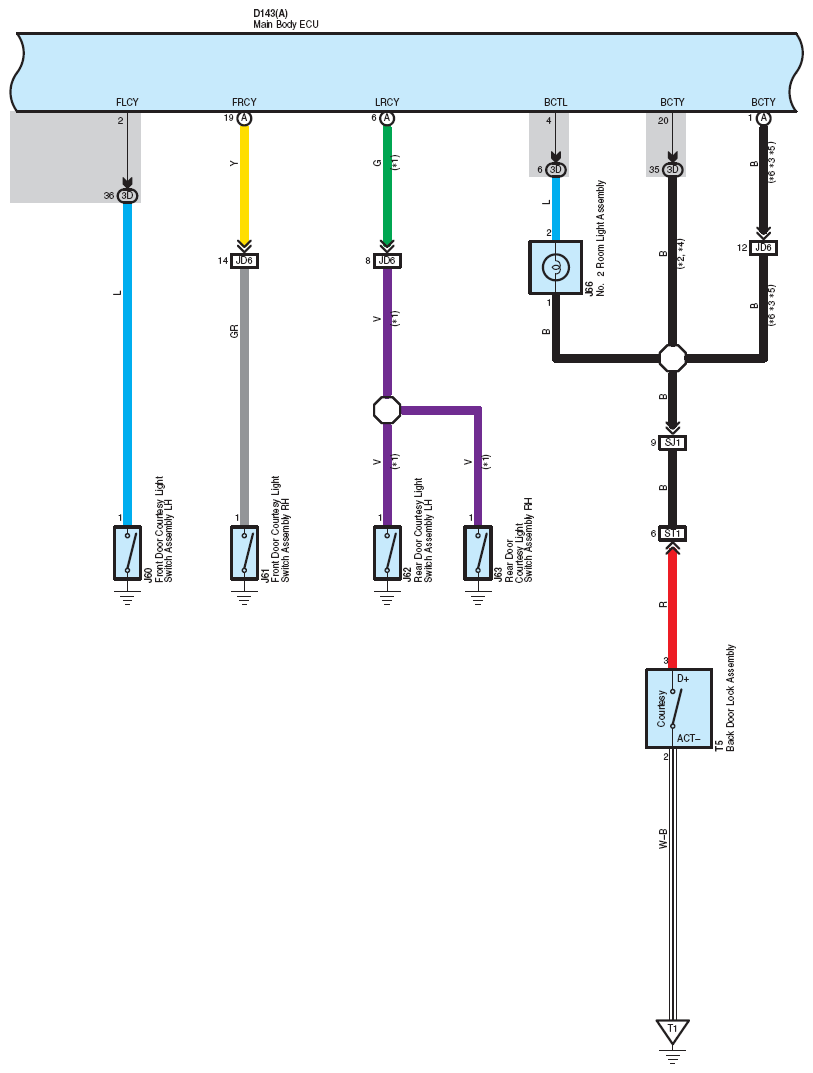

Fig 2: Interior Light - Hatchback (2 Of 3)

G12220082

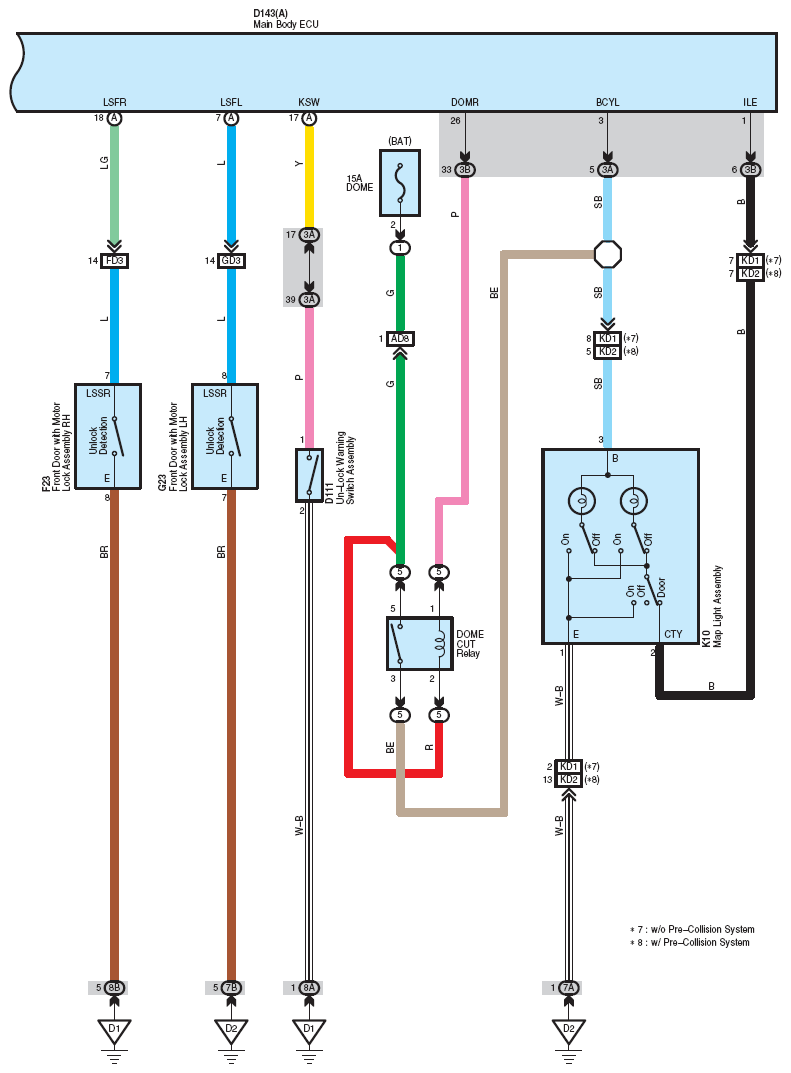

Fig 3: Interior Light - Hatchback (3 Of 3)

G12220083
