System Diagrams

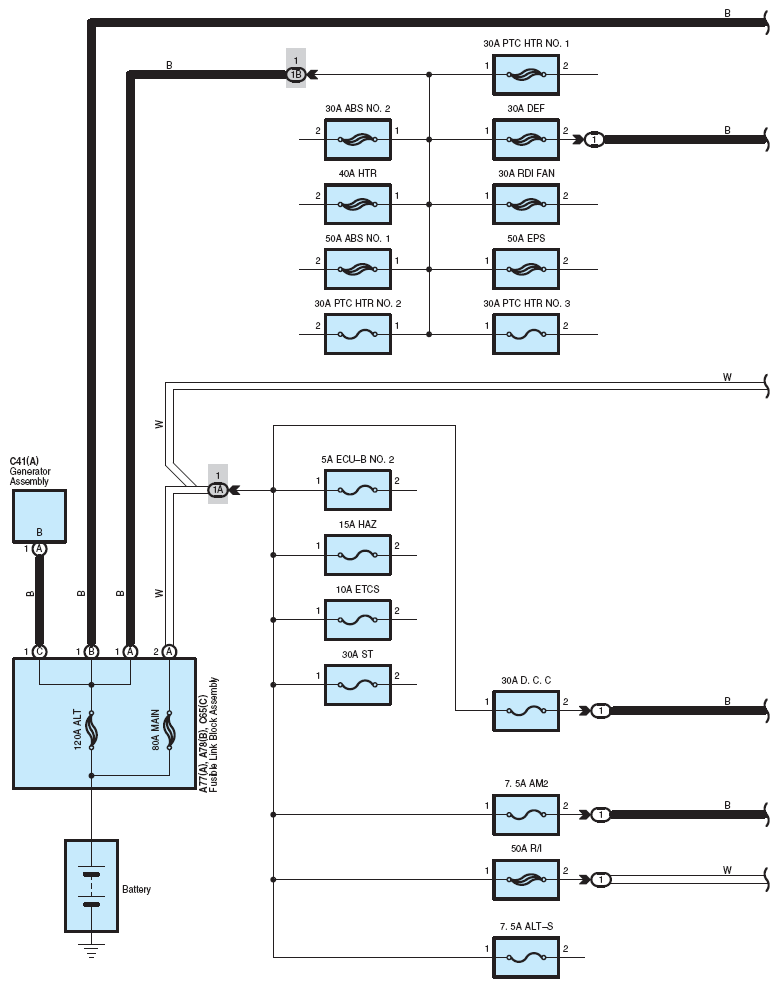

Fig 1: Power Source - Hatchback (1 Of 6)

G12220134

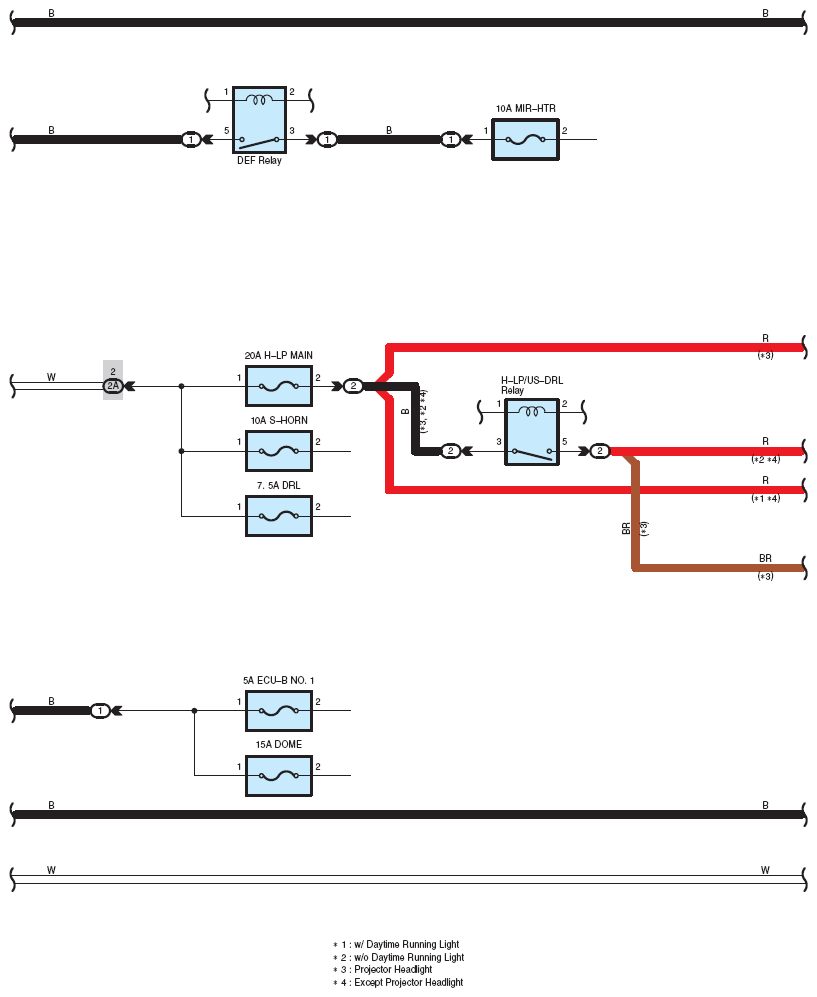

Fig 2: Power Source - Hatchback (2 Of 6)

G12220135

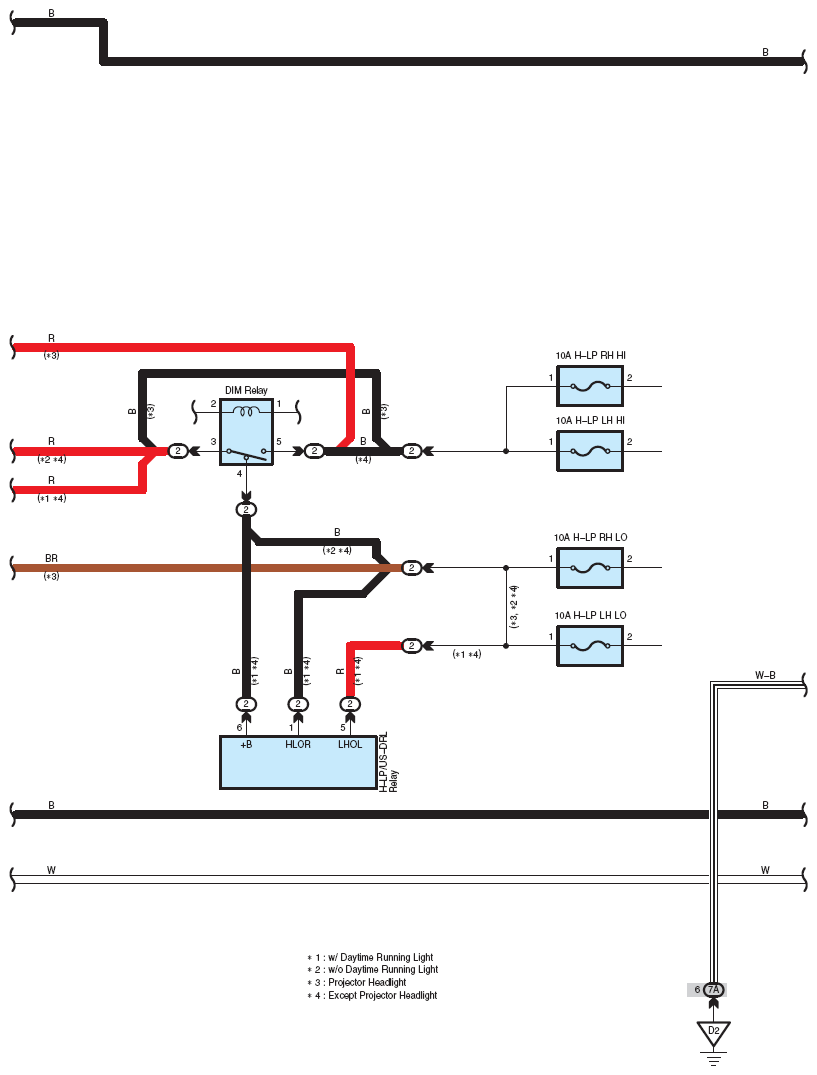

Fig 3: Power Source - Hatchback (3 Of 6)

G12220136

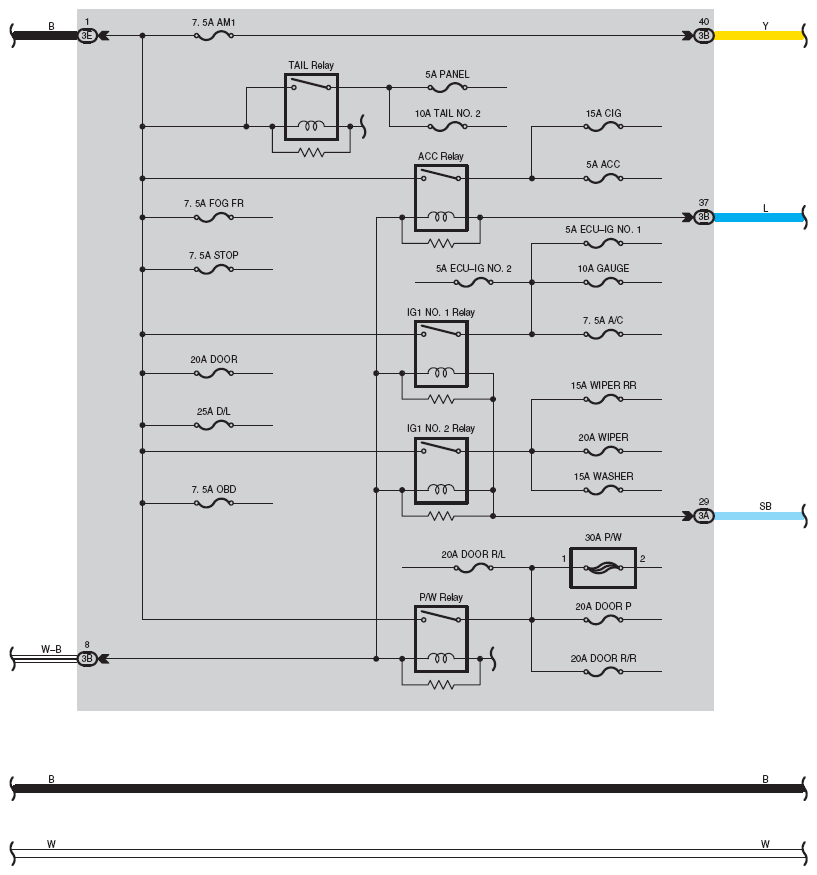

Fig 4: Power Source - Hatchback (4 Of 6)

G12220137

Fig 5: Power Source - Hatchback (5 Of 6)

G12220138

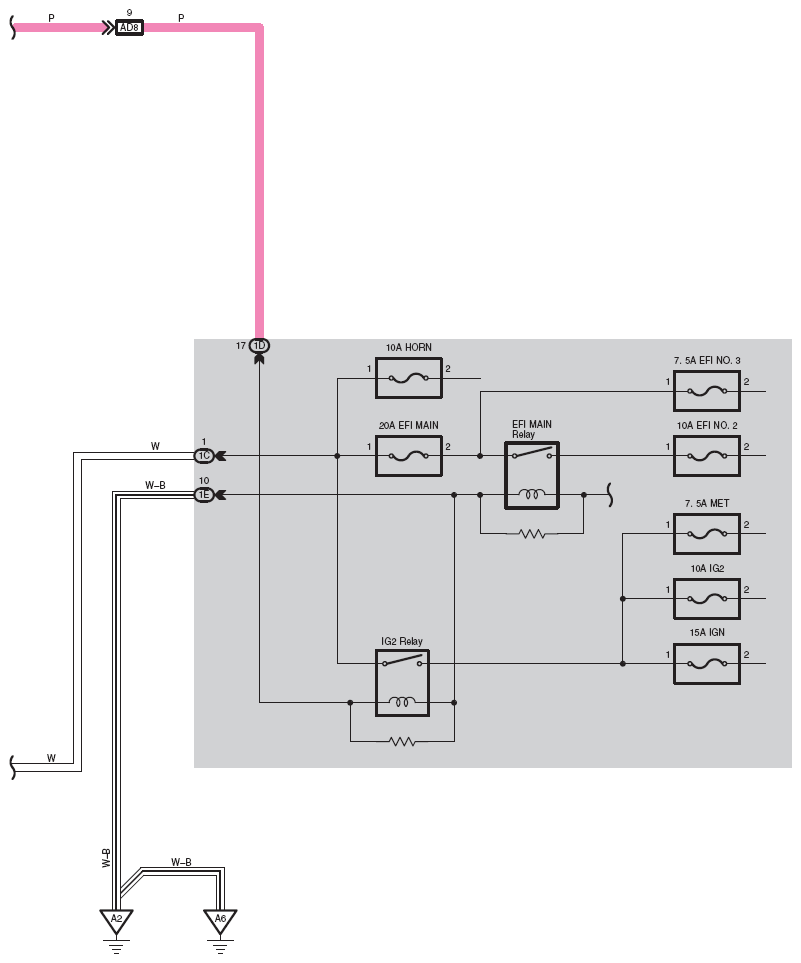

Fig 6: Power Source - Hatchback (6 Of 6)

G12220139
