Remote Control Mirror - Hatchback: Connectors

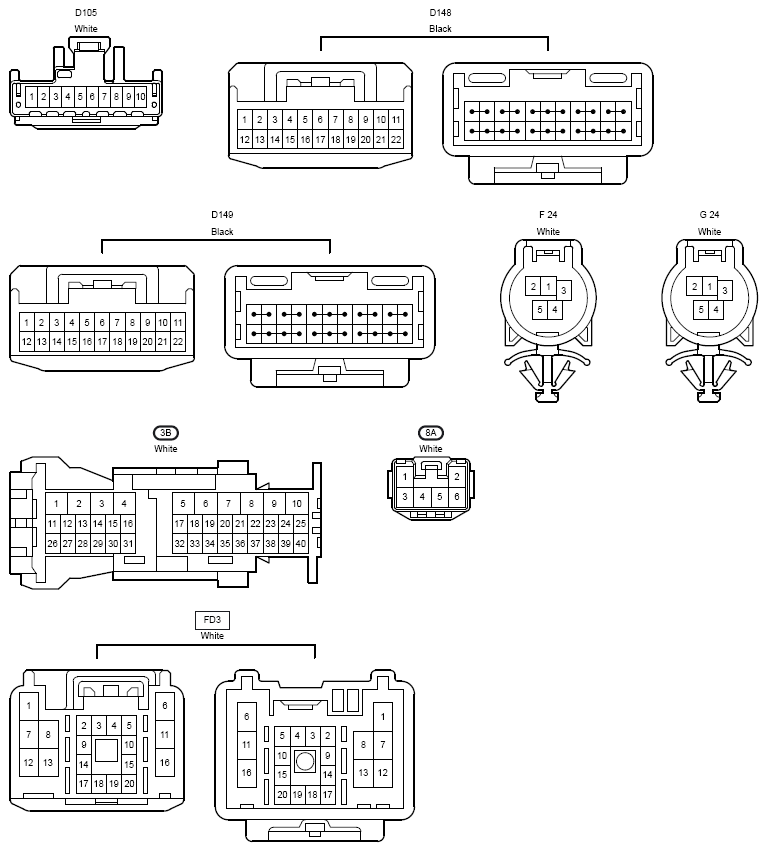

Fig 1: Connectors (1 Of 2)

G12220161

Fig 2: Connectors (2 Of 2)

G12220162
