Driver-Side Door Glass Can Be Operated Manually But Cannot Be Operated Automatically: Wiring Diagram

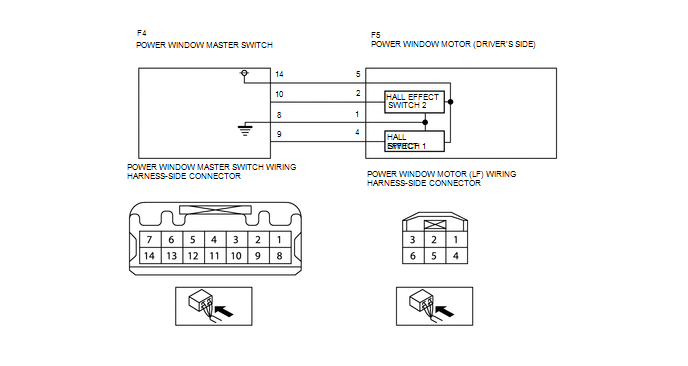

Fig 1: Power Window Wiring Diagram With Connector End Views

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
