Sensor Cover: Removal: Procedure

REMOVE SENSOR COVER

Pull cover A in the direction of the arrow shown in the figure and detach tab A of cover A and cover B.

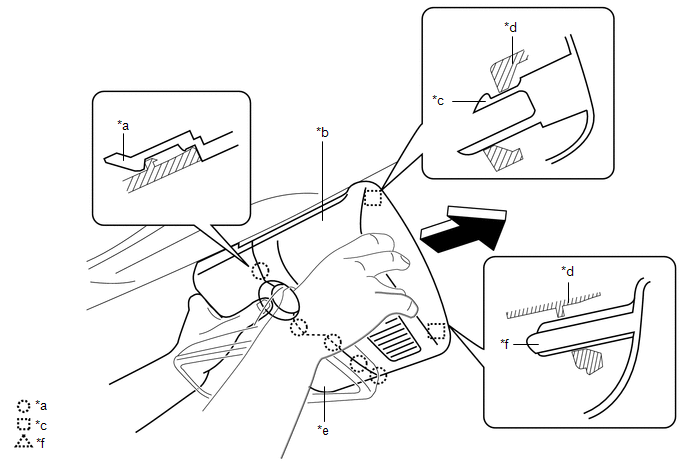

GTY488551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Tab A	*b	Sensor Cover A
*c	Tab B	*d	Base
*e	Sensor Cover B	*f	Pin A

Pull cover A in the direction of the arrow shown in the figure, detach the tab B and pin A for cover A and the base, and remove cover A from the base.

Remove the wiring harness from the hook.

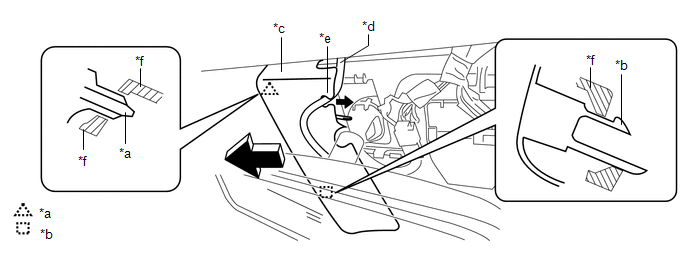

GTY487498

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Pin A	*b	Pin B
*c	Sensor Cover B	*d	Harness
*e	Hook	*f	Base

Pull cover B in the direction of the arrow shown in the figure, detach the tab C and pin B for cover B and the base, and remove cover B from the base.
