Front Speed Sensor: Components: Illustration

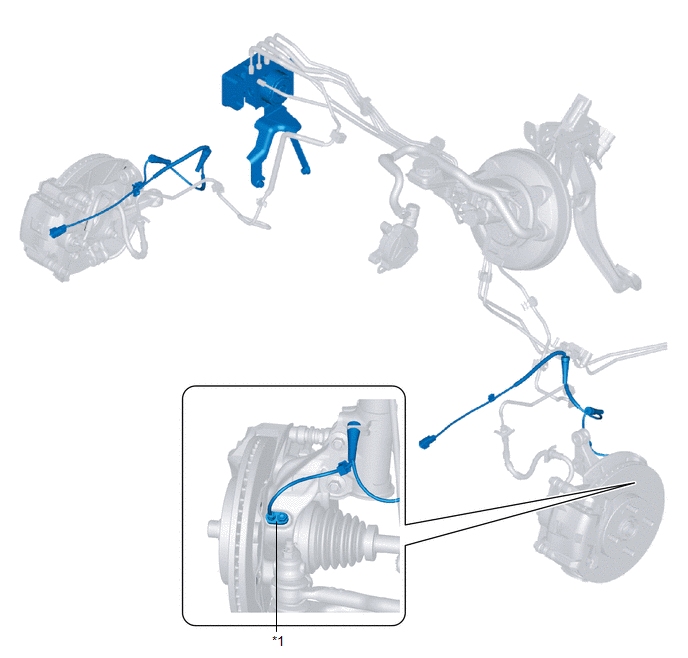

Fig 1: Front Speed Sensor Replacement Components

GTY494856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

FRONT SPEED SENSOR

-

-
