Front Speed Sensor: Installation: Procedure

  1. INSTALL FRONT SPEED SENSOR
    1. Install the bolt.

      Torque: 9 N*m (92 kgf*cm, 80 in.*lbf)

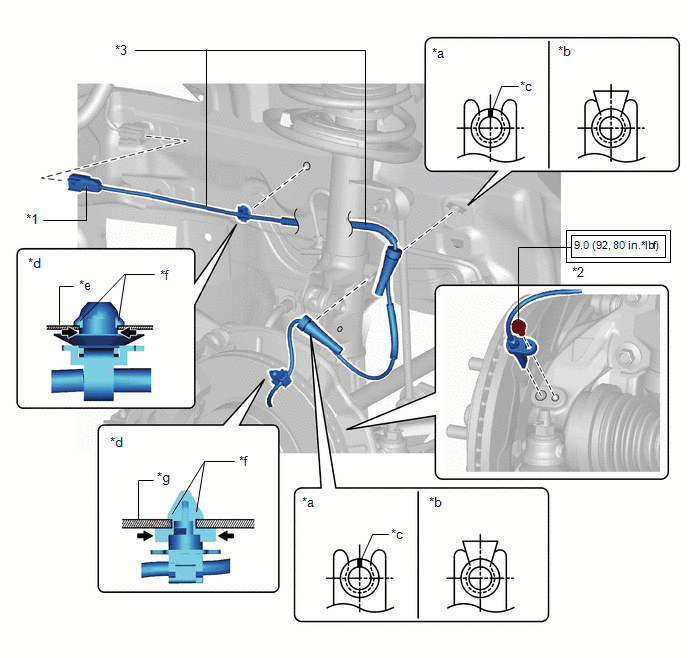

      GTY489292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Connector *2 Bolt
      *3 Front Speed Sensor - -
      *a Front Speed Sensor Type A *b Front Speed Sensor Type B
      *c Marking *d Remove Clip While Pressing Arrow Indication.
      *e Body *f Clip
      *g Front Shock Absorber - -
      N*m (kgf*cm, ft.*lbf): Specified torque - -
    2. Install the clip.
    3. Install the connector.
