Engine Switch: Inspection: Procedure

  1. INSPECT ENGINE SWITCH
    1. Resistance Inspection
      1. Disconnect the negative battery cable.

        Refer to REMOVAL

      2. Remove the upper column cover.

        Refer to REMOVAL

      3. Remove the meter hood.

        Refer to REMOVAL

      4. Remove the engine switch.

        Refer to REMOVAL

      5. Verify that the continuity between the engine switch terminals is as indicated in the table.
        GTY489551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        GTY490702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If not as indicated in the table, replace the engine switch.

        Refer to REMOVAL

    2. LED Illumination Inspection
      1. Disconnect the negative battery cable.

        Refer to REMOVAL

      2. Remove the upper column cover.

        Refer to REMOVAL

      3. Remove the meter hood.

        Refer to REMOVAL

      4. Remove the engine switch.

        Refer to REMOVAL

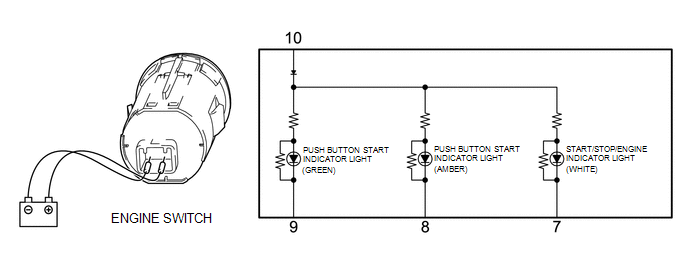

      5. Apply battery positive voltage and connect the ground to the engine switch terminals and verify that the LED illuminates as indicated in the table.
        GTY488652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. If the LED does not illuminate as indicated in the table, replace the engine switch.
          GTY488893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

          Refer to REMOVAL
