Fuel Pump: Disassembly: Procedure

  1. DISASSEMBLY FUEL PUMP
    1. Complete the "BEFORE SERVICE PRECAUTION".

      Refer to PRECAUTION

    2. Remove the fuel pump unit.

      Refer to REMOVAL

    3. Remove the fuel sender gage assembly.

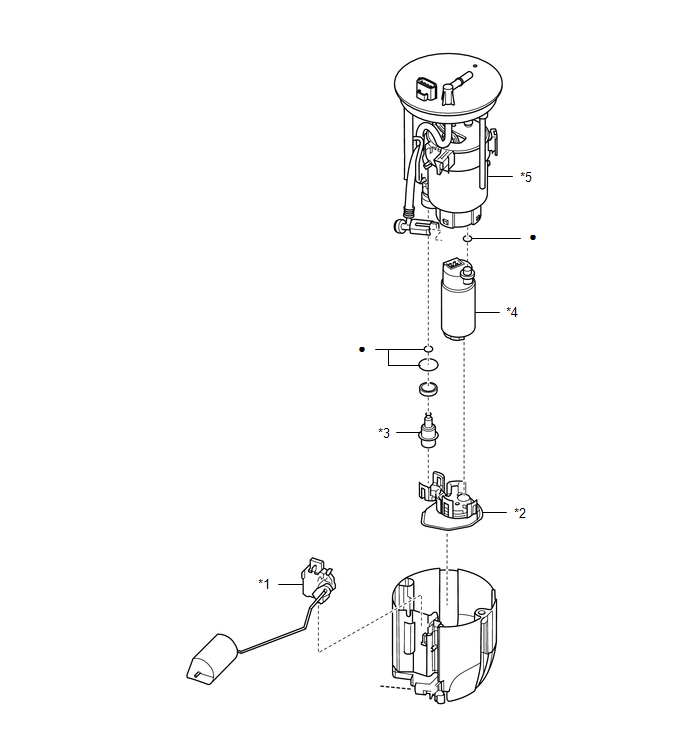

      GTY490464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Sender Gage Assembly *2 Fuel Filter (Low-Pressure)
      *3 Pressure Regulator *4 Fuel Pump
      *5 Fuel Filter - -
      • Non-reusable part - -
    4. Remove the fuel filter (low-pressure).
    5. Remove the pressure regulator.
    6. Remove the fuel pump.
    7. Remove the fuel filter.
