Accelerator Pedal: Removal: Procedure

  1. REMOVE ACCELERATOR PEDAL
    1. Disconnect the negative battery cable.

      Refer to REMOVAL

    2. Remove the APP sensor connector.

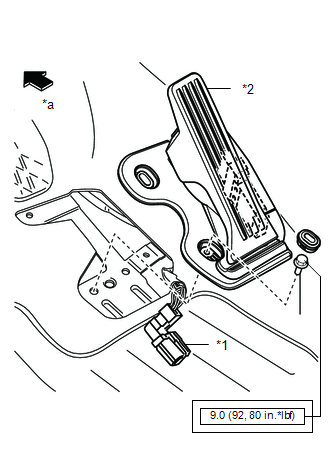

      GTY486864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 APP sensor Connector
      *2 Accelerator Pedal
      *a Vehicle Front
    3. Remove the accelerator pedal.
