Engine Coolant Temperature Sensor: Components: Illustration

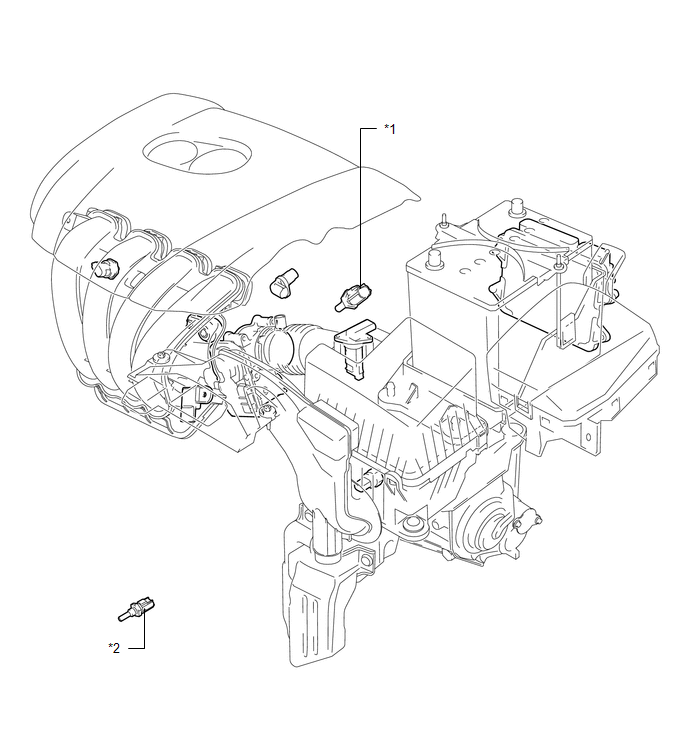

Fig 1: Engine Coolant Temperature Sensors Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

ENGINE COOLANT TEMPERATURE SENSOR

*2

ENGINE COOLANT TEMPERATURE SENSOR NO. 2
