Spark Plug: Components: Illustration

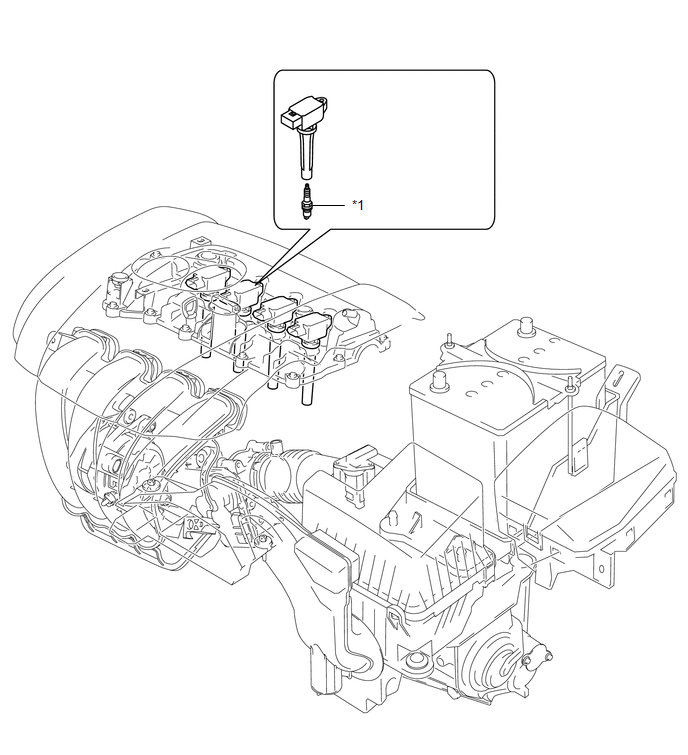

Fig 1: Spark Plug Locations

GTY493966

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

SPARK PLUG

-
