Components [06/2016 - ]

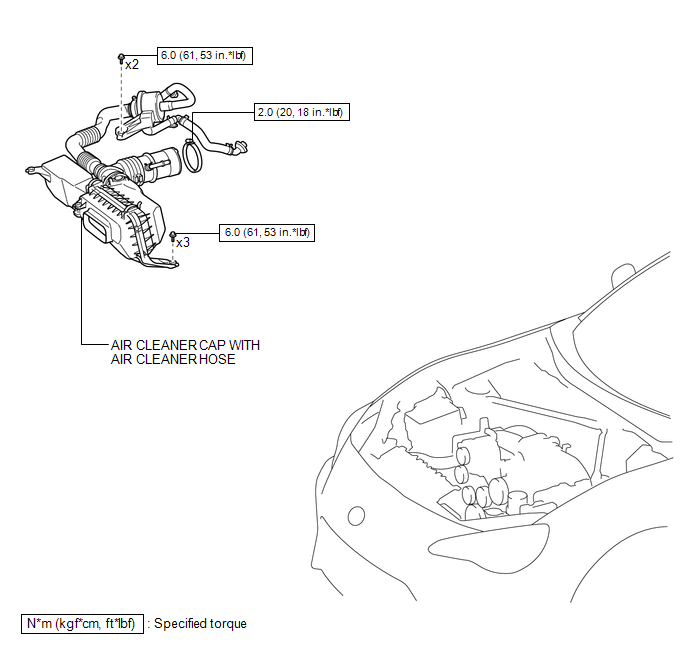

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 4)
GTY697710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

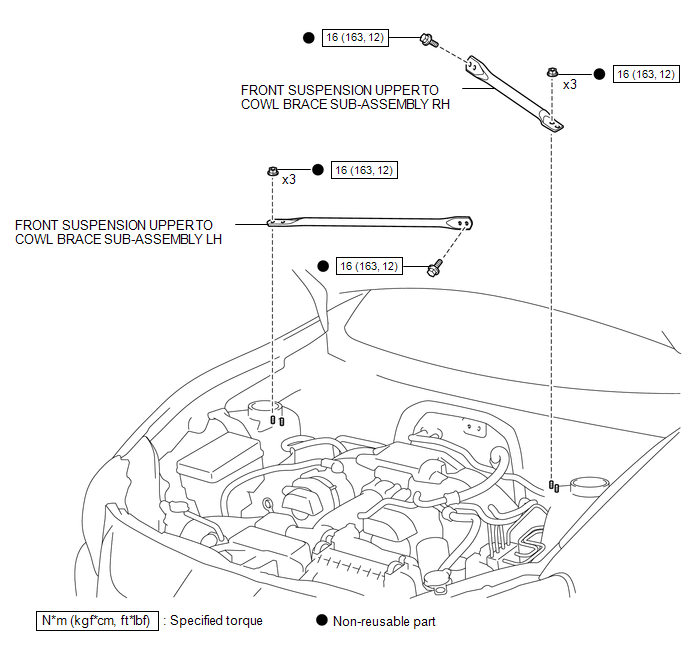

Fig 2: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 4)
GTY726328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

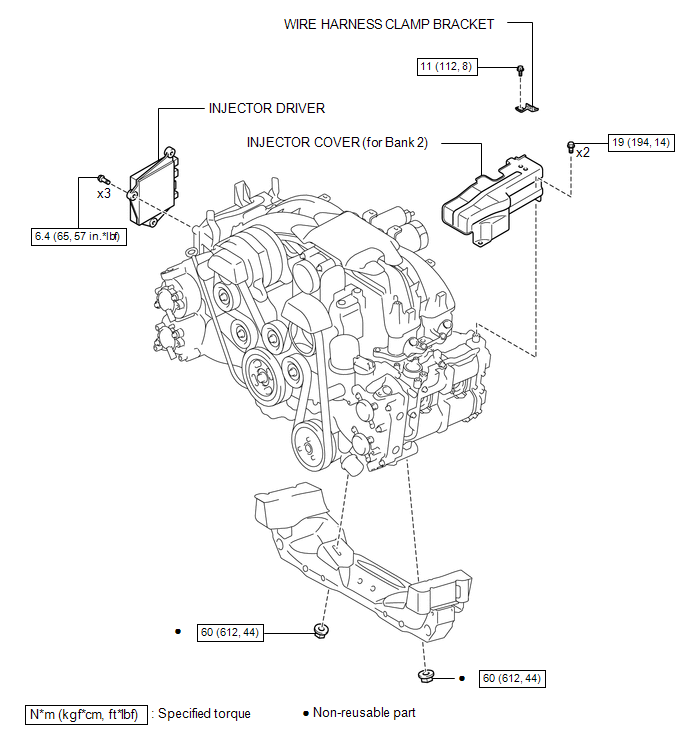

Fig 3: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (3 Of 4)
GTY740475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

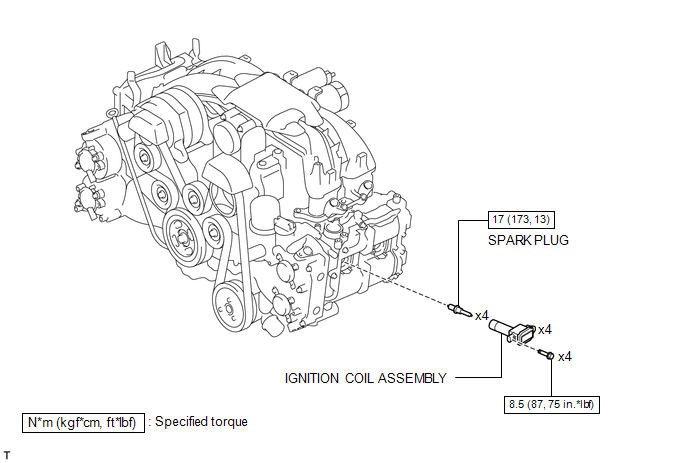

Fig 4: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (4 Of 4)
GTY739202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
