Installation [09/2016 - ]: Procedure

  1. INSTALL BACK-UP LIGHT BULB
    1. Install a new back-up light bulb to the No. 3 luggage room wire.

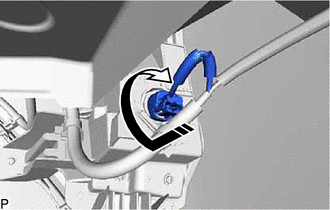

    2. Turn the No. 3 luggage room wire with the back-up light bulb as shown in the illustration to connect them as a unit.
      GTY711163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL NO. 2 FLOOR UNDER COVER (for LH Side)

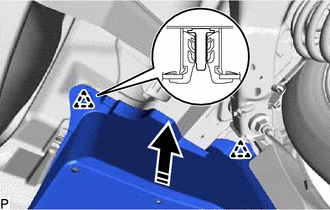

    1. Engage the 2 clips to temporarily install the No. 2 floor under cover as shown in the illustration.
      GTY725479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

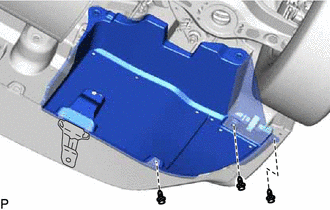

    2. Install the No. 2 floor under cover with the 3 clips.
      GTY706876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

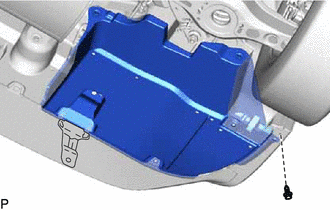

    3. Install the clip.
      GTY706873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

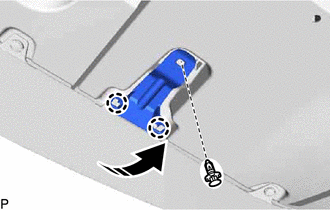

    4. Engage the 2 claws as shown in the illustration.
      GTY697218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connect in this Direction
    5. Connect the rear bumper assembly with the clip.
  3. INSTALL NO. 1 FLOOR UNDER COVER (for RH Side)

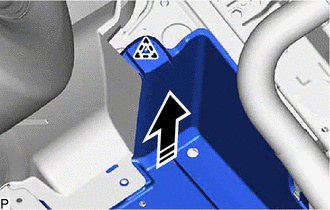

    1. Engage the clip to temporarily install the No. 1 floor under cover as shown in the illustration.
      GTY736962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

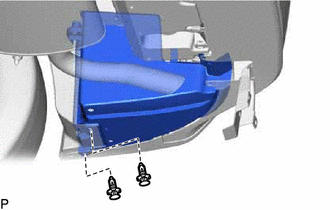

    2. Install the No. 1 floor under cover with the 2 clips.
      GTY706887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

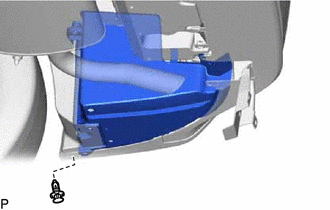

    3. Install the clip.
      GTY706886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

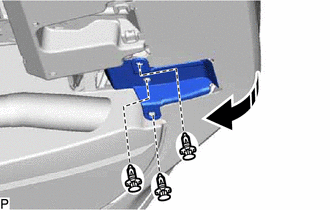

    4. Connect the rear bumper assembly with the clip as shown in the illustration.
      GTY698369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connect in this Direction
