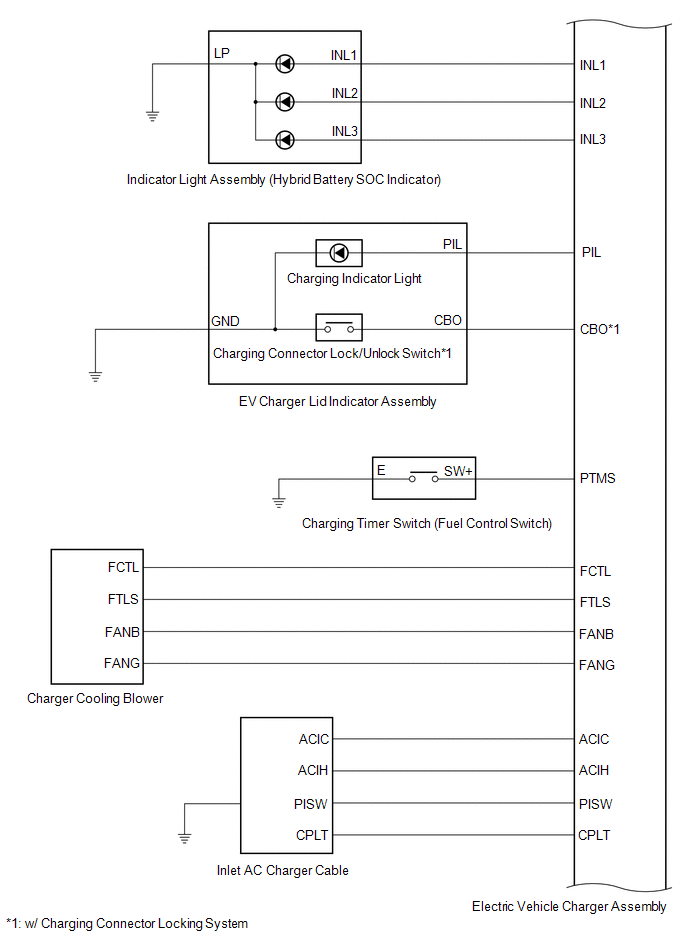

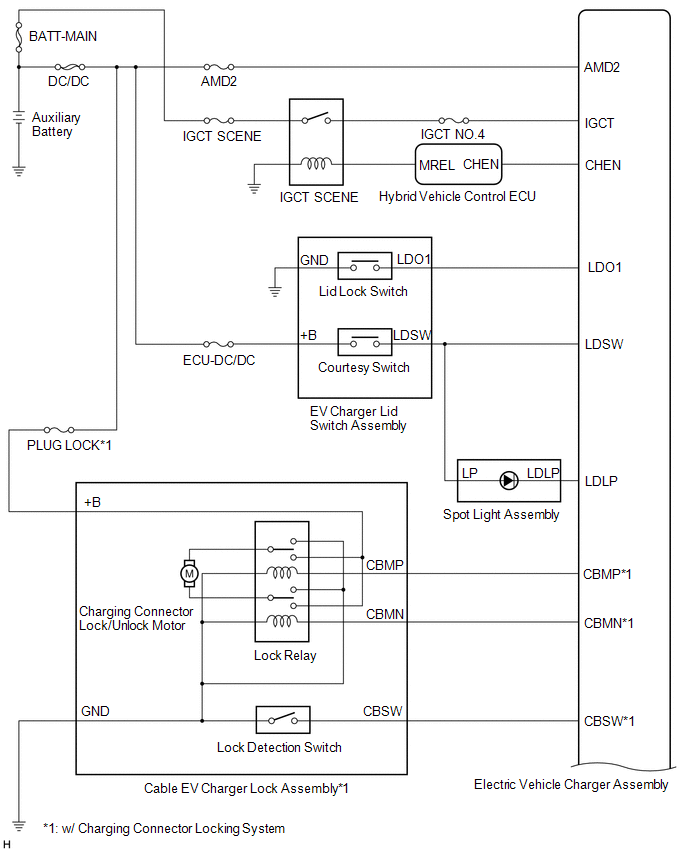

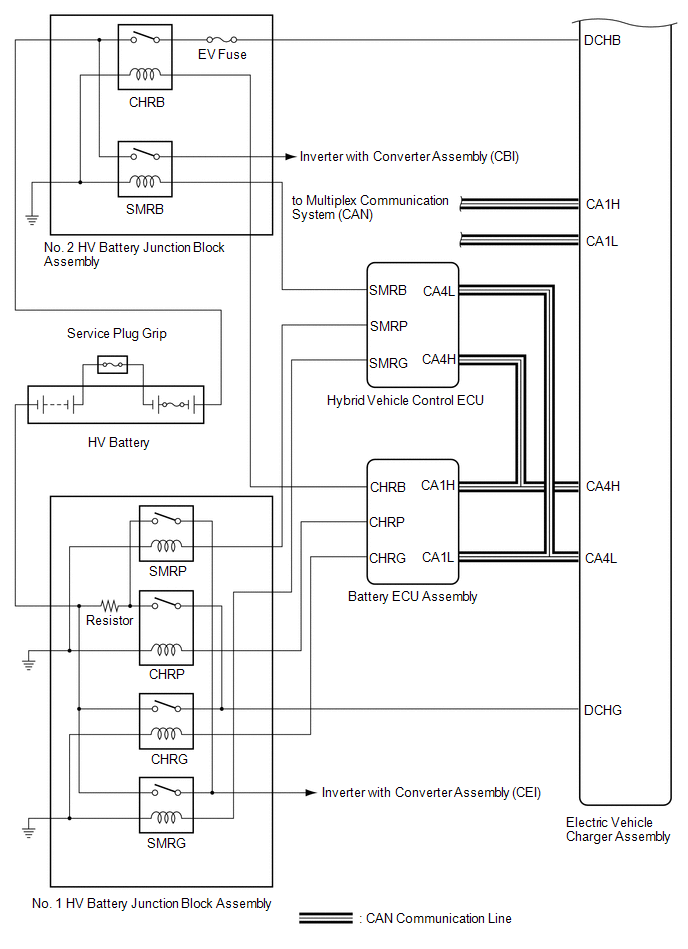

Home › Toyota › 2018 › Prius Prime Plus › Repair and Diagnosis › Engine Performance › Engine Control Systems › Plug-In Charge Control System - Diagnostics - Introduction › Plug-In Charge Control System › System Diagram [09/2016 - ] › System Diagram [09/2016 - ]
