Installation [07/2016 - ]: Procedure

HINT:

• Perform this step only when replacement of the pre-collision city heater is necessary.
• If a pre-collision city heater has been removed, replace it with a new one. Install a new pre-collision city heater with the pre-collision city heater wire as a set.
• Be careful not to bend the pre-collision city heater as it may cause an open circuit. If the pre-collision city heater has been bent, make sure to replace it with a new one.
• If the heater wire and adhesive and plastic outer layers of the pre-collision city heater have separated, make sure to replace the pre-collision city heater with a new one, otherwise water ingress may occur and cause a short circuit.

1. Clean the windowshield glass surface.
2. If the ambient temperature is lower than 15°C:
   1. Using a heat light, heat the pre-collision city heater and windshield glass surface.
      HEATING TEMPERATURE



      Item	Temperature
      Pre-collision city heater	15 to 80 °C (59 to 176 °F)
      Windshield glass	15 to 80 °C (59 to 176 °F)

      WARNING:

      • Do not touch the heat light and heated parts, touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.
      NOTE:

      Do not heat the pre-collision city heater or windshield glass excessively.

3. Connect the 2 connectors.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   *a

   Mark

   HINT:

   Make sure to connect the connector which has been marked to the correct terminal as shown in the illustration.

4. Remove the release paper from a new pre-collision city heater.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

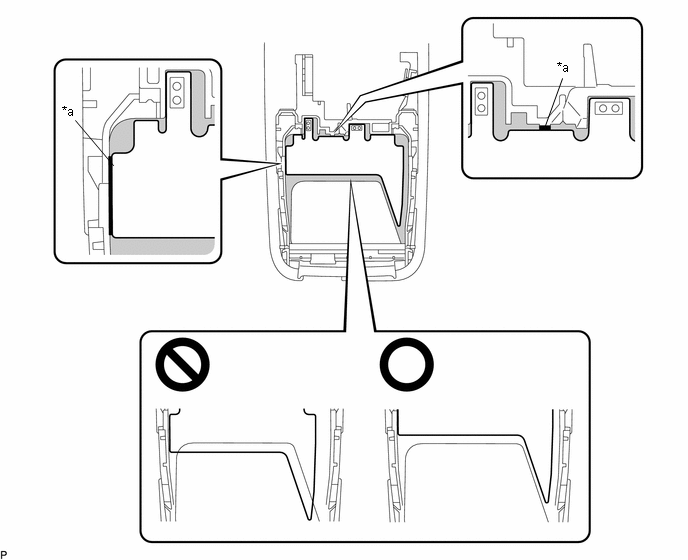

5. Align the pre-cash safety city heater with pre-collision city heater wire with the alignment marks and install it.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   *a

   Alignment Mark

   -

   -

   NOTE:

   • Make sure to install the pre-collision city heater with pre-collision city heater wire within the black ceramic border of the windshield glass.
   • The double-sided tape of a pre-collision city heater will deteriorate if it is detached. Make sure to replace the pre-collision city heater with a new one when reattachment is necessary.

   HINT:

   Apply the pre-collision city heater along the bracket.

1. Engage the 2 guides and clamp to install the pre-collision city heater wire.

Refer to INSTALLATION [07/2016 - 03/2017]  or INSTALLATION [03/2017 - ]
