Components [03/2017 - 06/2017]

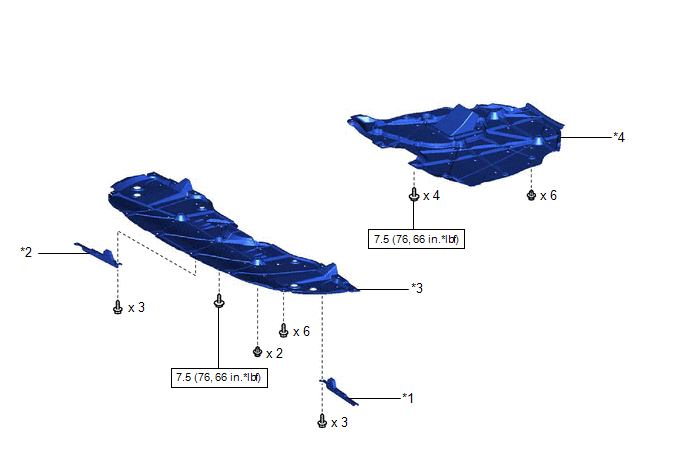

Fig 1: Engine Oil Temperature Sensor Replacement Components With Torque Specifications [03/2017 - 06/2017] (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

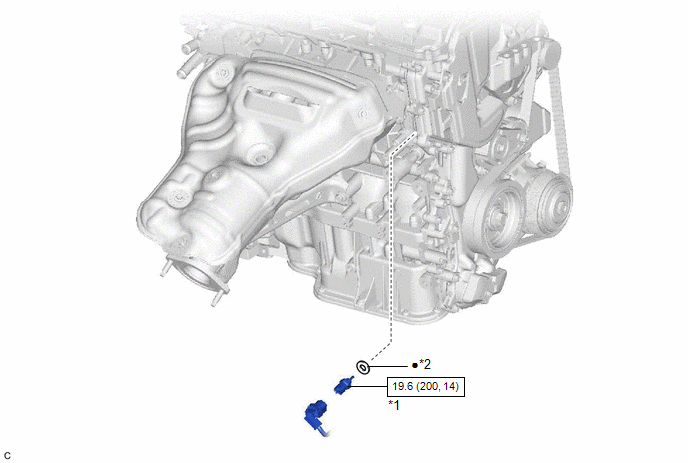

Fig 2: Engine Oil Temperature Sensor Replacement Components With Torque Specifications [03/2017 - 06/2017] (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | ENGINE OIL TEMPERATURE SENSOR | *2 | GASKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
