Components [09/2022 - 09/2024]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

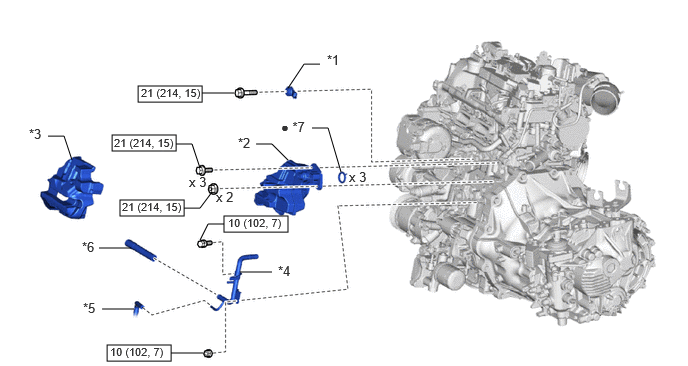

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | KNOCK CONTROL SENSOR | *2 | NO. 1 VENTILATION CASE |
| *3 | NO. 2 CYLINDER BLOCK INSULATOR | *4 | NO. 2 WATER BY-PASS PIPE |
| *5 | NO. 6 WATER BY-PASS HOSE | *6 | NO. 4 WATER BY-PASS HOSE |
| *7 | GASKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
