Removal [08/2020 - 12/2021]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to REPLACEMENT [02/2019 - 12/2021]

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (w/ Grille Shutter)

    Refer to PROCEDURE - Step 26

  3. REMOVE INLET AIR CLEANER ASSEMBLY (w/ Grille Shutter)

    See step  3

  4. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE (w/ Grille Shutter)

    See step  4

  5. REMOVE NO. 2 ENGINE COOLANT TEMPERATURE SENSOR (w/ Grille Shutter)

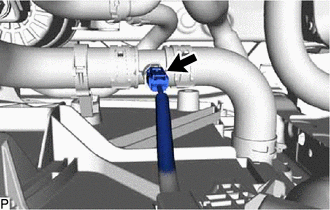

    1. Disconnect the No. 2 engine coolant temperature sensor connector.
      GTY920834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

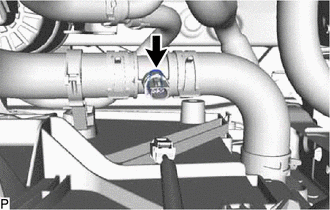

    2. Remove the clip and No. 2 engine coolant temperature sensor from the water outlet.
      GTY920832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the No. 2 engine coolant temperature sensor has been struck or dropped, replace it.

  6. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [08/2020 - 12/2021]

  7. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.
      GTY868592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip and engine coolant temperature sensor from the water outlet.
      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.

      GTY868593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
