Engine Control System [2GR-FKS] (Service Information)
›
Knock Sensor
›
Components [08/2016 - ]
Components [08/2016 - ]

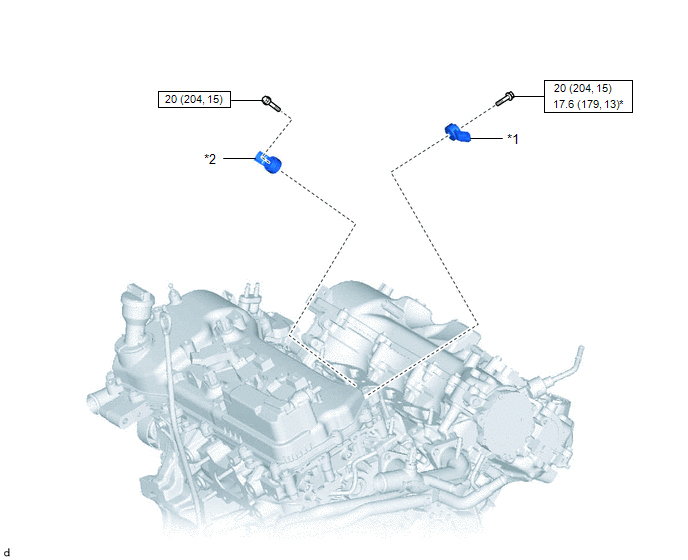

Fig 1: Knock Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
KNOCK SENSOR (for Bank 1)
*2
KNOCK SENSOR (for Bank 2)
N*m (kgf*cm, ft.*lbf): Specified torque
*
For use with a union nut wrench
