Removal [08/2015 - 11/2017]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT WHEEL
  3. REMOVE FRONT SPEED SENSOR

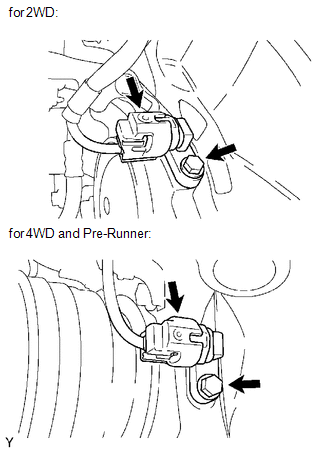

    GTY581255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the speed sensor connector.
    2. Remove the bolt and front speed sensor.
      NOTE:
      • Do not attach any foreign matter to the sensor tip.
      • Ensure that no foreign matter enters the sensor installation part.
