Removal [08/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - 08/2017] , or refer to PRECAUTION [08/2017 - 08/2019] , or refer to PRECAUTION [08/2019 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

  3. REMOVE FRONT WHEEL
  4. REMOVE FRONT SKID CONTROL SENSOR WIRE LH

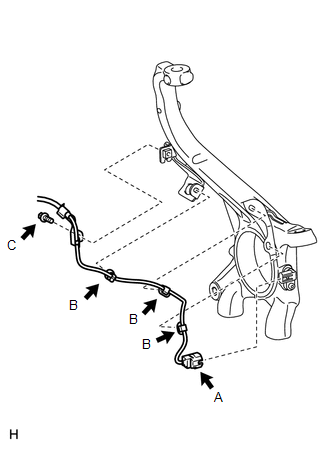

    1. Disconnect the connector (labeled A) from the front speed sensor.
      GTY187545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 clips (labeled B) and remove the clamp bolt (labeled C).

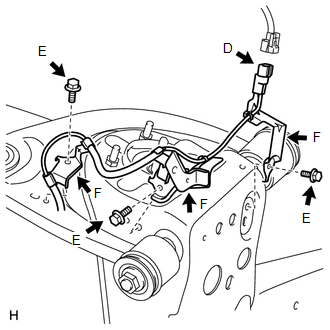

    3. Disconnect the connector (labeled D).
      GTY569013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 bolts (labeled E), 3 harness clamps (labeled F) and sensor wire.
  5. REMOVE FRONT SPEED SENSOR LH
    GTY180218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the hexagon socket head cap bolt (labeled A) and speed sensor (labeled B) from the knuckle.
  6. REMOVE FRONT SKID CONTROL SENSOR CLAMP LH
    1. Remove the bolt (labeled C) and skid control sensor clamp (labeled D) from the knuckle.
  7. REMOVE FRONT SKID CONTROL SENSOR WIRE RH

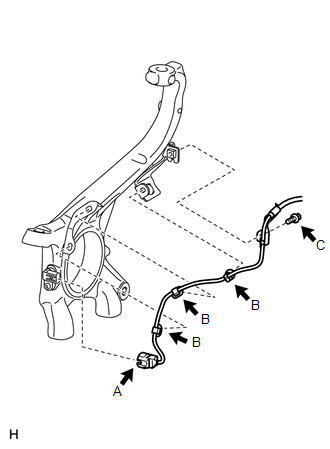

    1. Disconnect the connector (labeled A) from the front speed sensor.
      GTY176988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 clips (labeled B) and remove the clamp bolt (labeled C).

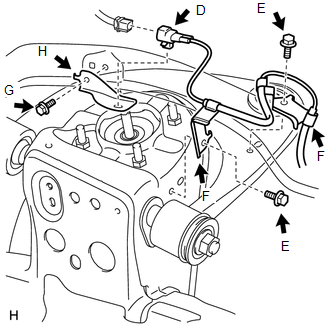

    3. Disconnect the connector (labeled D).
      GTY573768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the connector (labeled D) from the skid control sensor clamp (labeled H).
    5. Remove the 2 bolts (labeled E) and 2 harness clamps (labeled F).
    6. Remove the bolt (labeled G) and skid control sensor clamp (labeled H).
  8. REMOVE FRONT SPEED SENSOR RH

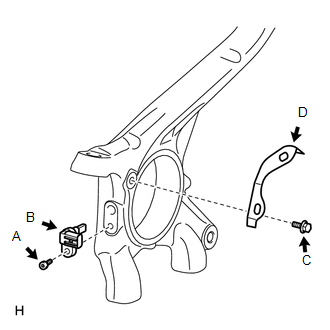

    1. Remove the hexagon socket head cap bolt (labeled A) and speed sensor (labeled B) from the knuckle.
      GTY202898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT SKID CONTROL SENSOR CLAMP RH
    1. Remove the bolt (labeled C) and skid control sensor clamp (labeled D) from the knuckle.
