Installation [08/2019 - ]: Procedure

  1. INSTALL REAR SPEED SENSOR (for Hatchback)
    1. Install the bolt.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

      GTY492241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Bolt *2 Rear Speed Sensor
      *a Remove Clip While Pressing Arrow Indication. *b Body
      *c Clip - -
      Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -
    2. Install the clip.
    3. Press the rear speed sensor tab and press in the sensor toward the inside of the vehicle.

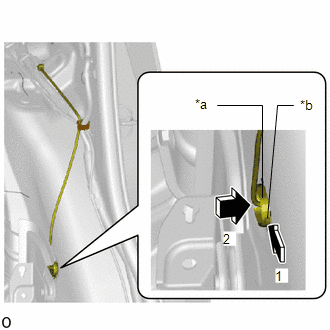

      GTY855729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Speed Sensor
      *b Tab
    4. Install the clip.

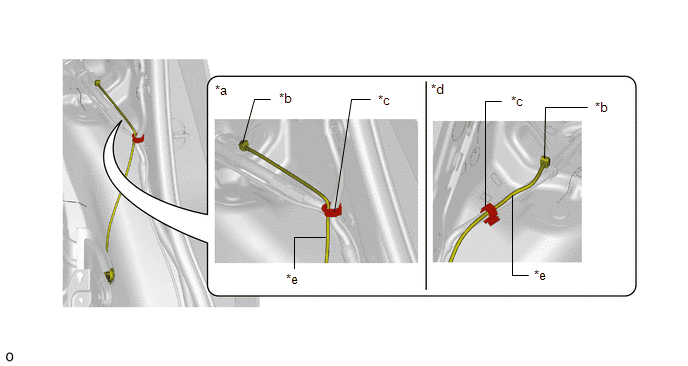

      GTY890302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a LH *b Connector
      *c Clip *d RH
      *e Rear Speed Sensor Wiring Harness - -
    5. Install the connector.
    6. Install the following parts:
      1. Trunk side trim

        Refer to INSTALLATION [08/2019 - ]

      2. Rear seat back

        Refer to INSTALLATION [07/2015 - ]

      3. Rear center seat belt lower anchor installation bolt

        Refer to INSTALLATION [07/2015 - ]

      4. Rear seat cushion

        Refer to INSTALLATION [07/2015 - ]

      5. Rear scuff plate

        Refer to INSTALLATION [07/2015 - ]

      6. Trunk end trim

        Refer to INSTALLATION [08/2019 - ]

      7. Trunk board

        Refer to INSTALLATION [07/2015 - ]

      8. Trunk covering

        Refer to INSTALLATION [08/2019 - ]

      9. Rear package tray

        Refer to INSTALLATION [08/2019 - ]

  2. INSTALL REAR SPEED SENSOR (for Sedan)
    1. Install the bolt.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

      GTY492241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Bolt *2 Rear Speed Sensor
      *a Remove Clip While Pressing Arrow Indication. *b Body
      *c Clip - -
      Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -
    2. Install the clip.
    3. Press the rear speed sensor tab and press in the sensor toward the inside of the vehicle.
    4. Install the clip.
      GTY494026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a LH *b Connector
      *c Clip *d RH
      *e Rear Speed Sensor Wiring Harness - -
    5. Install the connector.
    6. Install the following parts:
      1. Refer to INSTALLATION [07/2015 - ]
      2. Rear seat cushion

        Refer to INSTALLATION [07/2015 - ]

      3. Rear scuff plate

        Refer to INSTALLATION [07/2015 - ]
