Engine Control System - Service Information
›
Engine Coolant Temperature Sensor
›
Components [08/2018 - ]
Components [08/2018 - ]

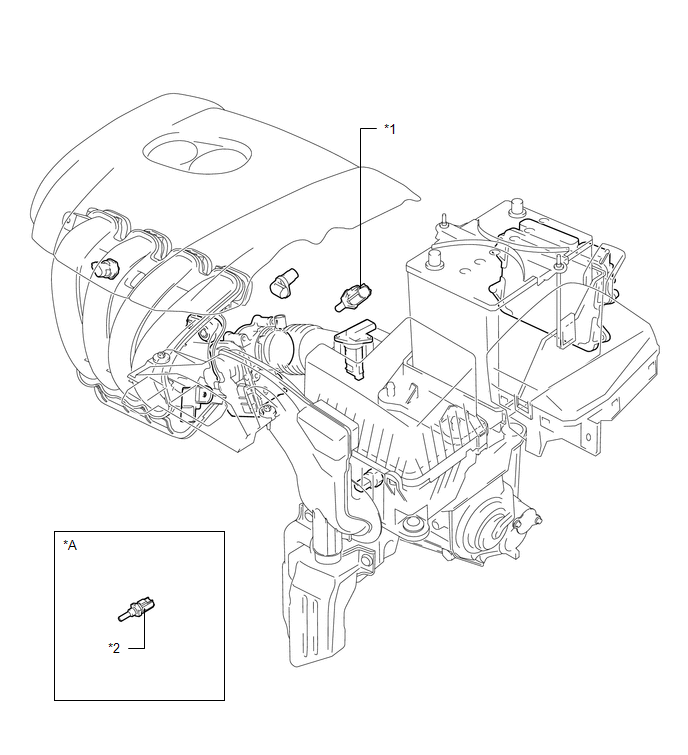

Fig 1: Engine Coolant Temperature Sensor Replacement Components [08/2018 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
w/ ECT Sensor No. 2
-
-
*1
ENGINE COOLANT TEMPERATURE SENSOR
*2
ENGINE COOLANT TEMPERATURE SENSOR NO. 2
