Removal [02/2017 - ]: Procedure

Refer to REMOVAL [02/2017 - 05/2018] , or refer to REMOVAL [05/2018 - ]

Refer to PROCEDURE - STEP 1

1. Disconnect the engine oil temperature sensor connector.

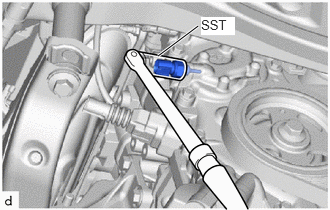

2. Using SST, remove the engine oil temperature sensor from the timing chain cover sub-assembly.
   • SST: 09817-33191
   NOTE:

   If an engine oil temperature sensor has been struck or dropped, replace it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the gasket from the engine oil temperature sensor.
