Mass Air Flow Meter
›
Components [09/2022 - ]
Components [09/2022 - ]

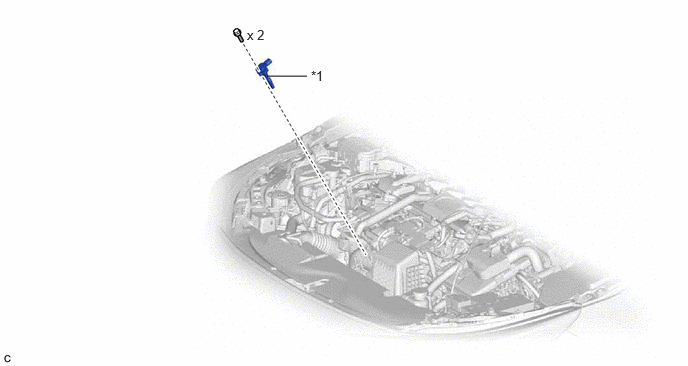

Fig 1: Mass Air Flow Meter Replacement Components [09/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
MASS AIR FLOW METER SUB-ASSEMBLY
-
-
