Components [03/2019 - ]

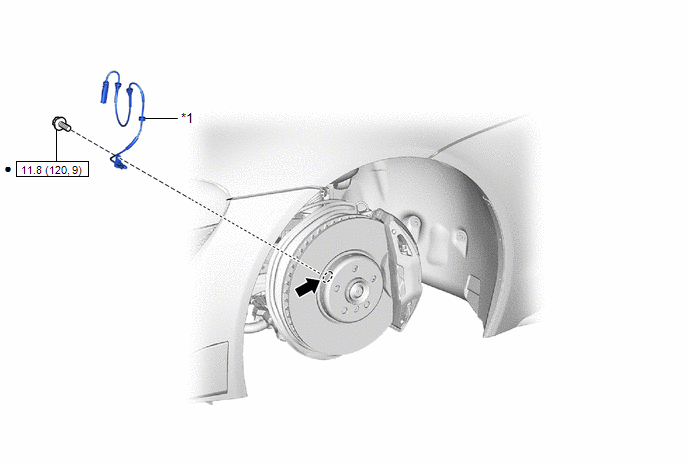

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications [03/2019 - ]
GTY913581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT SKID CONTROL SENSOR WIRE - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
NBU 12K Lubricating Grease - -
