Removal [03/2019 - ]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE FRONT SKID CONTROL SENSOR WIRE

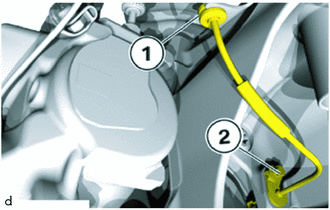

    1. Detach the cable of the front skid control sensor wire from the bracket (1).
      GTY840515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Undo E11 bolt (2) and remove the front skid control sensor wire.

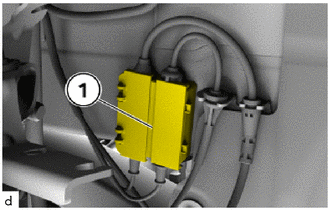

    3. Open the connection box (1).
      GTY922947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the front skid control sensor wire cable from the brackets (1).
      GTY860808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Unlock plug connection (2) and disconnect.
