Components [03/2019 - ]

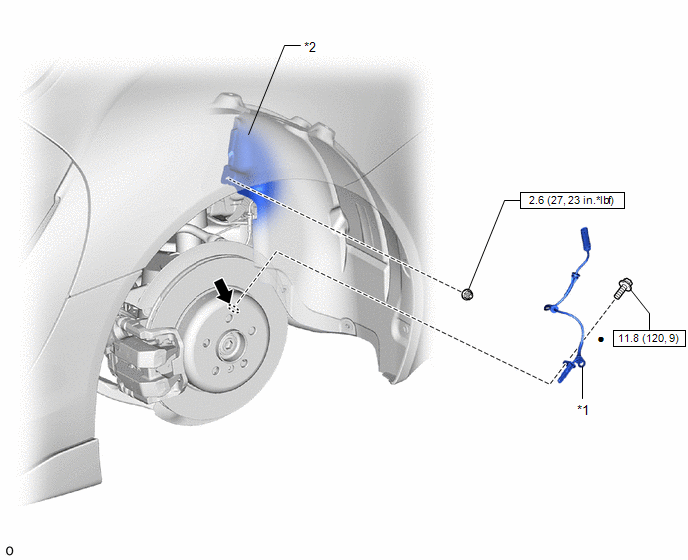

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications [03/2019 - ]
GTY907662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR SKID CONTROL SENSOR WIRE *2 REAR WHEEL HOSE LINER
N*m (kgf*cm, ft.*lbf): Specified torque Non-reusable part
NBU 12K Lubricating Grease - -
