Installation [03/2019 - 07/2020]: Procedure
- INSTALL REAR POWER DISTRIBUTION BOX

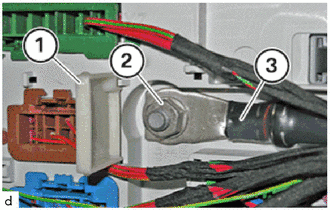

- Connect all the connectors to the rear power distribution box (1).
- Install the positive battery cable (3).
- Tighten the nut (2).
Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)
- If applicable, replace the tie band on the positive battery cable (3).

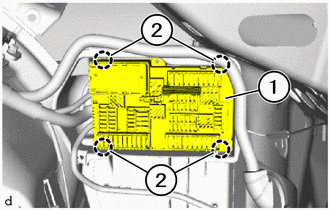

- Close the cover (1).
- Attach the claws (2) to install the rear power distribution box (1) correctly.
- Install the screwdriver and transport hook.

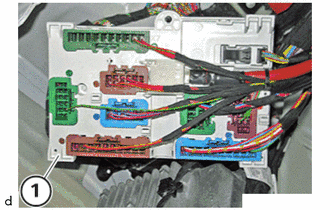

- Connect all the connectors to the rear power distribution box (1).
- INSTALL AIR COMPRESSOR ASSEMBLY (w/ Repair Kit)
- Install the air compressor assembly.
- INSTALL TUBELESS TIRE REPAIR KIT (w/ Repair Kit)
- Install the tubeless tire repair kit.
- INSTALL DECK TRIM SIDE BOARD AND DECK SIDE TRIM COVER RH
Refer to PROCEDURE - Step 21
- INSTALL ROPE HOOK (w/ Courtesy Light)
Refer to PROCEDURE - Step 22
- INSTALL SEAT BELT HOLE COVER SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 13
- CONNECT TRANSVERSE PIPE TRIM
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 5
- INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 24
- INSTALL DECK TRIM REAR COVER
Refer to PROCEDURE - Step 24
- INSTALL TRIANGLE REFLECTOR SET
Refer to PROCEDURE - Step 25
- INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to INSTALLATION [03/2019 - ]
