Components [03/2019 - ]

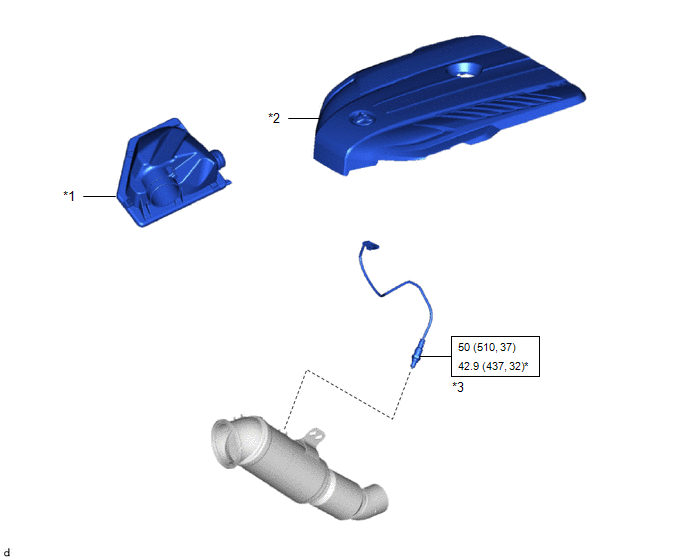

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications [03/2019 - ]
GTY901404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR CLEANER CAP SUB-ASSEMBLY *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 OXYGEN SENSOR - -
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
