Components [03/2019 - ]

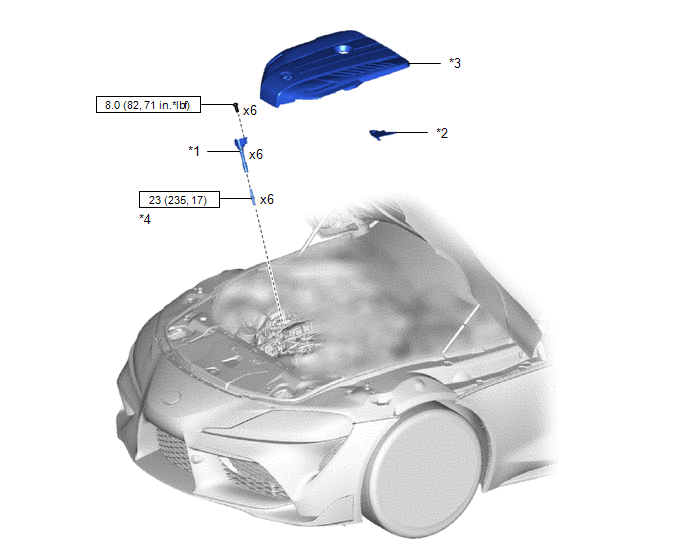

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications [03/2019 - ]
GTY845351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL *2 NO. 1 ENGINE COVER
*3 NO. 1 ENGINE COVER SUB-ASSEMBLY *4 SPARK PLUG
N*m (kgf*cm, ft.*lbf): Specified torque - -
